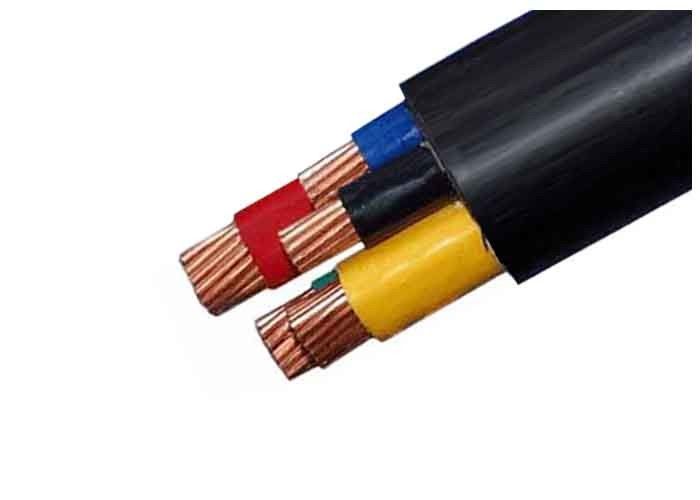

Muti-Cores U-1000V CV PVC Insulated Cables IEC Gost 1.5sqmm ~ 1000sqmm CE ROHS
  • nama
  • nama
  • nama
  • nama

Muti-Cores U-1000V CV PVC Insulated Cables IEC Gost 1.5sqmm ~ 1000sqmm CE ROHS

Jumlah Pesanan Minimum: 500meter
harga: US$1.67~189.65per meter
kemasan standar: Drum kayu
Periode pengiriman: 7 hari
metode pembayaran: L / C, T / T, D / A, D / P, Western Union, MoneyGram
Kapasitas Pasokan: 30000Kilometer per Bulan
Rincian Informasi
Deskripsi produk
Informasi Rinci
Tempat asal
Cina
Nama merek
QINGDAO YICABLE CABLE
Sertifikasi
IEC,KEMA,ISO,CE,GOST
Core:
Empat
Ukuran:
1.5sqmm ~ 1000sqmm
Jenis konduktor:
Kabel Tembaga Terkomputasi
warna isolasi:
Merah, kuning, biru, hijau
Tegangan pengenal:
600 / 1000V
Selubung warna:
Hitam atau kustomisasi
Menyoroti:

pvc insulated copper wire

,

copper pvc wire

Deskripsi produk

Muti-Cores U-1000V CV Cable Manufacturer in China IEC Gost CE ROHS



Constructions

Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2

Insulation: PVC/XLPE

Sheath: PVC type ST2 to IEC 60502, black

Note: Insulation color as per standards or customer requirement



Applications

Used for Power transmission and distribution line with voltage rated at 35kv and below. Compared with PVC Insulated Power cable, XLPE power cable boasts not only characteristics of excellent electricity, mechanism , heat and aging- resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long term working.

For laying indoors and outdoors.Able to bear certain traction during installation, but not

external mechanical forces.



Standards
International: IEC 60502, IEC 60228, (IEC 60332-3 for ZR-YJV only)
China: GB/ T 12706, (GB/T 18380-3 for ZR-YJV only)
Other standards such as BS, DIN and ICEA upon request


Technical data
Rated voltage: 0.6 / 1 kV
Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core
15 x cable O.D for multi core
Certificates
CE, RoHS, CCC, KEMA and more others at request



Electric Performance



1.Maximum Conductor DC resistance @ 20℃, Ω/km

Cross Section mm2 Copper Aluminum

Cross Section

mm2

 Copper Aluminum
25 0.727 1.20 185 0.0991 0.164
35 0.542 0.868 240 0.0754 0.125
50 0.387 0.641 300 0.0601 0.100
70 0.268 0.443 400 0.0470 0.0778
95 0.193 0.320 500 0.0366 0.0605
120 0.153 0.253 630 0.0238 0.0469
150 0.124 0.206



2. Single phase AC 50Hz voltage test or DC voltage test:

Rated voltage 3.6 6 8.7 12 18 21 26
Single phase AC 50Hz test voltage 12.5 21 30.5 42 63 73.5 91



3. Partial Charge Test:

Test voltage is 1.73U0, the partial charge should not bigger than 10PC.

Muti-Cores U-1000V CV PVC Insulated Cables IEC Gost 1.5sqmm ~ 1000sqmm CE ROHS 0
