Muti-Cores 0.6/1kV CU PVC Insulated Cables IEC CE Certified Product Shanghai Manufacturer

Jumlah Pesanan Minimum:	300 meter
harga:	US$1.67~266.85per meter
kemasan standar:	Baja Drum kayu
Periode pengiriman:	7 hari
metode pembayaran:	L / C, T / T, D / A, D / P, Serikat Barat, MoneyGram, Standby LC
Kapasitas Pasokan:	30000Kilometer per Bulan

Rincian Informasi

Deskripsi produk

Informasi Rinci

Tempat asal

Cina

Nama merek

QINGDAO YICABLE CABLE

Sertifikasi

IEC,KEMA,ISO,CE,GOST

Core:

Empat

Ukuran:

1.5sqmm ~ 1000sqmm

Jenis konduktor:

Kabel Tembaga Terkomputasi

warna isolasi:

Merah, kuning, biru, hijau

Tegangan pengenal:

600 / 1000V

Selubung warna:

Hitam atau kustomisasi

Pengepakan:

Baja Drum kayu

Menyoroti:

pvc insulated copper wire

copper pvc wire

Deskripsi produk

Muti-Cores 0.6/1kV CU PVC Insulated Cables IEC CE Certified Product Shanghai Manufacturer

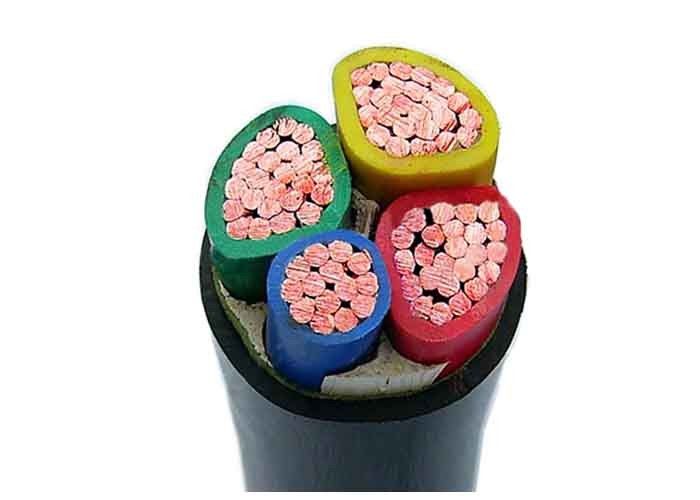

Constructions

Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2

Insulation: PVC/XLPE

Sheath: PVC type ST2 to IEC 60502, black

Note: Insulation color as per standards or customer requirement

Applications

Used for Power transmission and distribution line with voltage rated at 35kv and below. Compared with PVC Insulated Power cable, XLPE power cable boasts not only characteristics of excellent electricity, mechanism , heat and aging- resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long term working.

For laying indoors and outdoors.Able to bear certain traction during installation, but not

external mechanical forces.

Standards
International: IEC 60502, IEC 60228, (IEC 60332-3 for ZR-YJV only)
China: GB/ T 12706, (GB/T 18380-3 for ZR-YJV only)
Other standards such as BS, DIN and ICEA upon request

Technical data
Rated voltage: 0.6 / 1 kV
Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core
15 x cable O.D for multi core
Certificates
CE, RoHS, CCC, KEMA and more others at request

Electric Performance

1.Maximum Conductor DC resistance @ 20℃, Ω/km

Cross Section mm2	Copper	Aluminum	Cross Section mm2	Copper	Aluminum
25	0.727	1.20	185	0.0991	0.164
35	0.542	0.868	240	0.0754	0.125
50	0.387	0.641	300	0.0601	0.100
70	0.268	0.443	400	0.0470	0.0778
95	0.193	0.320	500	0.0366	0.0605
120	0.153	0.253	630	0.0238	0.0469
150	0.124	0.206

2. Single phase AC 50Hz voltage test or DC voltage test:

Rated voltage	3.6	6	8.7	12	18	21	26
Single phase AC 50Hz test voltage	12.5	21	30.5	42	63	73.5	91

3. Partial Charge Test:

Test voltage is 1.73U0, the partial charge should not bigger than 10PC.

Muti-Cores 0.6/1kV CU PVC Insulated Cables IEC CE Certified Product Shanghai Manufacturer 0
