Medium Voltage Armoured Electrical Cable , Aluminium Wire Armoured Cable

Tempat asal	Cina
Nama merek	QINGDAO YICABLE CABLE
Sertifikasi	CE, RoHS, CCC, KEMA

Detail Produk

Nama Produk:

Kabel daya lapis baja /lapis baja

Area konduktor nominal:

1.5mm2 hingga 1000 mm2

Tegangan Uji:

12,5 kV/ 5 menit.

Standar:

IEC 60502-2 IEC 60228

Aplikasi:

saluran distribusi daya, meletakkan di poros, air di bawah tanah

Nilai Tegangan:

3.6/6kV,

Menyoroti:

armored electrical wire

armoured power cable

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1000 M

Harga

Bisa dinegosiasikan

Kemasan rincian

Besi-kayu Drum packing (dengan perlindungan)

Waktu pengiriman

10 -15 hari kerja setelah menerima pembayaran Anda

Syarat-syarat pembayaran

T/T atau LC

Menyediakan kemampuan

100 km per bulan

Deskripsi produk

Medium Voltage Armoured Electrical Cable , Aluminium Wire Armoured Cable

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 OC
Inner covering : PVC
Armoring : Aluminum wire
Sheath : PVC type ST2 to IEC 60502, black

CODE Designation:

YJ: XLPE insulation

V: PVC sheath

72: Aluminum wire armoring

Applications:

Suitable for use in power distribution lines with rated voltage 3.6/6KV. For laying in shaft, water underground and large difference of level, able to bear external mechanical pressure and

moderate pulling force.

Standards:

International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

Technical data:

Rated voltage: 0.6 / 1 kV

Maximum Conductor Temperature: under normal (90^OC), emergency (130^OC) or short circuit no

more than 5 s (250℃) conditions.

Min. Ambient Temp. 0^OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 15 x cable O.D

Certificates:

CE, RoHS, CCC, KEMA and more others at request

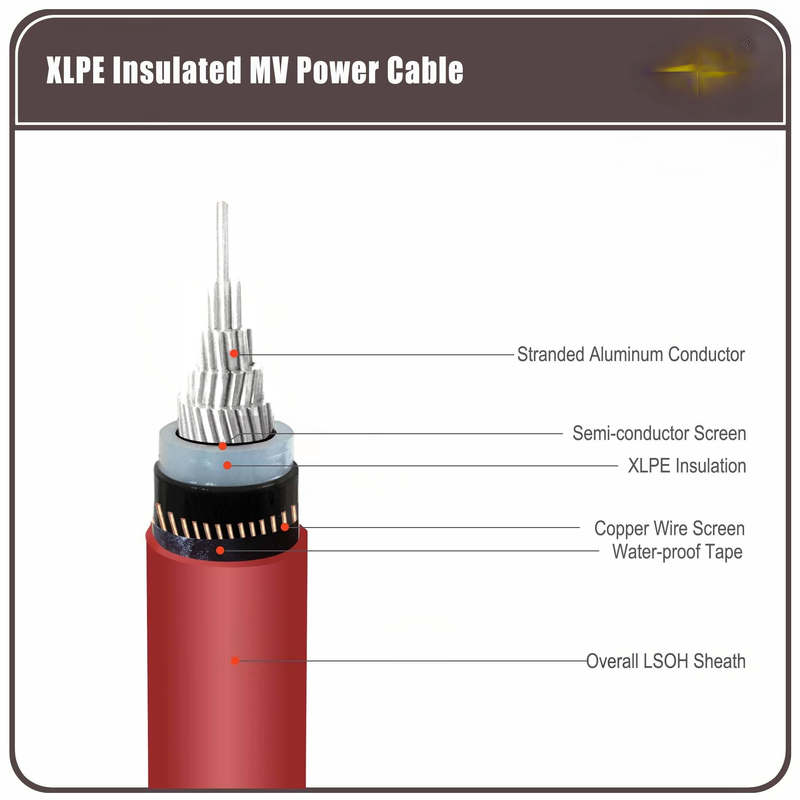

Medium Voltage Armoured Electrical Cable , Aluminium Wire Armoured Cable 0

Brief technical Specification:

Nom. Cross-section of conductor	Strands No./Dia. Of Conductor	Insulation Thickness	Inner Sheath Thickness	Dia. Of Armor Wire	Sheath Thickness	Approx. O.D.	Approx. Weight
mm²	pc/mm	mm	mm	mm	mm	(mm)	kg/km
1 × 25	7/2.14	2.5	1.2	1.6	1.8	24.0	1396
1 × 35	7/2.52	2.5	1.2	1.6	1.8	25.0	1550
1 × 50	10/2.52	2.5	1.2	1.6	1.8	26.0	1754
1 × 70	14/2.52	2.5	1.2	1.6	1.9	28.0	2054
1 × 95	19/2.52	2.5	1.2	1.6	1.9	29.0	2367
1 × 120	24/2.52	2.5	1.2	1.6	2.0	31.0	2701
1 × 150	30/2.52	2.5	1.2	2.0	2.0	33.0	3301
1 × 185	37/2.52	2.5	1.2	2.0	2.1	35.0	3756
1 × 240	48/2.52	2.6	1.2	2.0	2.2	38.0	4458
1 × 300	61/2.52	2.8	1.2	2.0	2.3	40.0	5223
1 × 400	61/2.97	3.0	1.3	2.5	2.4	45.0	6804
1 × 500	61/3.23	3.2	1.3	2.5	2.5	50.0	8094
