Electrical SWA Armoured Cable 4 Core 1KV Anti Aging Environmental Protection

Jumlah Pesanan Minimum:	500 meter
harga:	US$0.5~121 per Meter
kemasan standar:	Drum kayu
Periode pengiriman:	10 hari kerja
metode pembayaran:	T/T, L/C
Kapasitas Pasokan:	10.000 Kilometer per Bulan

Rincian Informasi

Deskripsi produk

Informasi Rinci

Tempat asal

Cina

Nama merek

QINGDAO YICABLE CABLE

Sertifikasi

ISO,CE,IEC,TUV,KEMA

Jenis model:

CU / XLPE / SWA / PVC kabel

Tegangan pengenal:

1kV

Isolasi:

XLPE

Konduktor:

Cu, Tembaga

Zirah:

SWA, kawat baja lapis baja

Ukuran:

1 ~ 630mm2

Core:

4 Inti

Selubung Bahan:

PVC, PE, LSOH

Standar:

IEC / BS / / VDE

Garansi:

2 Tahun

Sampel gratis:

tersedia

Menyoroti:

armored cable wiring

armoured power cable

Deskripsi produk

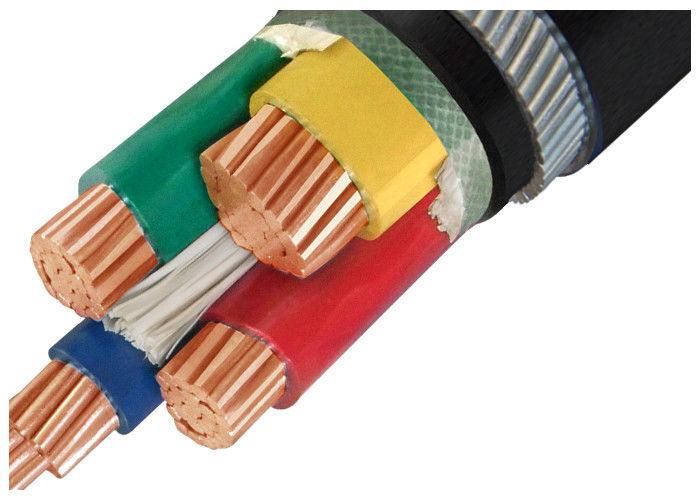

Electrical SWA Armoured Cable 4 Core 1KV Anti Aging Environmental Protection

PRODUCT DETAILS

Construction

Conductor	Compact Stranded Copper Conductor, Class 2 as per IEC 60228
Conductor	Circular solid Copper Conductor, Class 1 as per IEC 60228
Insulation	XLPE(Cross-linked polyethylene)
Filler	Fillers strip, Yarn, or Paper
Wrapping Tape	Non woven
Inner Covering	Extruded PVC
Armour	Steel Wire, or Steel Tape, or Aluminium Tape optional
Overall Sheath	PVC or PE or LSOH

Applications

Used for power transmission and distribution line with voltage rated at 35kV and below.Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.

Standards

International: IEC 60502-2, IEC 60228

China: GB/T 12706.2-2008

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 0.6/1kV

Maximum Conductor Temperature: under normal (90°C), emergency (130°C) or short circuit no more than 5 s (250°C) conditions.

Min. Ambient Temp. 0°C, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single-core non-armoured cables

15 x cable O.D for single-core armoured cables

15 x cable O.D for multi-core non-armoured cables

12 x cable O.D for multi-core armoured cables

Specifications

Nom. Cross-section of conductor

Strands

No./Dia. Of Conductor

Insulation Thickness

Inner Covering Thickness

Dia. Of Armor Wire

Sheath Thickness

Approx. O.D.

Approx.

Weight

Max. D.C Resistance of Conductor (20 ℃)

Testing Voltage A.C

Current Rating

mm²

pc/mm

(mm)

kg/km

Ω /km

kV/5min

In air (A)

In soil(A)

4 × 4	7/0.85	0.7	1.0	0.9	1.8	18.0	699	4.61	3.5	34	45
4 × 6	7/1.04	0.7	1.0	1.25	1.8	19.0	820	3.08	3.5	43	57
4 × 10	7/1.38	0.7	1.0	1.25	1.8	22.0	1233	1.83	3.5	60	77
4 × 16	7/1.78	0.7	1.0	1.6	1.8	24.5	1550	1.15	3.5	83	105
4 × 25	7/2.14	0.9	1.0	1.6	1.8	29.2	2036	0.727	3.5	105	125
4 × 35	7/2.52	0.9	1.0	2.0	1.9	32.5	2501	0.524	3.5	125	155
4 × 50	10/2.52	1.0	1.0	2.0	2.0	33.0	3064	0.387	3.5	160	185
4 × 70	14/2.52	1.1	1.0	2.0	2.1	37.0	3974	0.268	3.5	200	225
4 × 95	19/2.52	1.1	1.2	2.0	2.3	43.0	5032	0.193	3.5	245	270
4 × 120	24/2.52	1.2	1.2	2.5	2.5	45.0	6327	0.153	3.5	285	310
4 × 150	30/2.52	1.4	1.4	2.5	2.7	51.0	7765	0.124	3.5	325	345
4 × 185	37/2.52	1.6	1.4	2.5	2.8	56.0	9205	0.0991	3.5	375	390
4 × 240	48/2.52	1.7	1.4	2.5	3.0	62.0	11444	0.0754	3.5	440	450
4 × 300	61/2.52	1.8	1.6	2.5	3.2	67.0	13830	0.0601	3.5	505	515
4 × 400	61/2.97	2.0	1.6	3.15	3.5	74.0	19673	0.0470	3.5	570	575

PACKING AND SHIPPING

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

AFTER-SERVICE COMMITMENT

Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:

1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.

We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!

Shanghai Shenghua Cable (Group) Co., Ltd.
