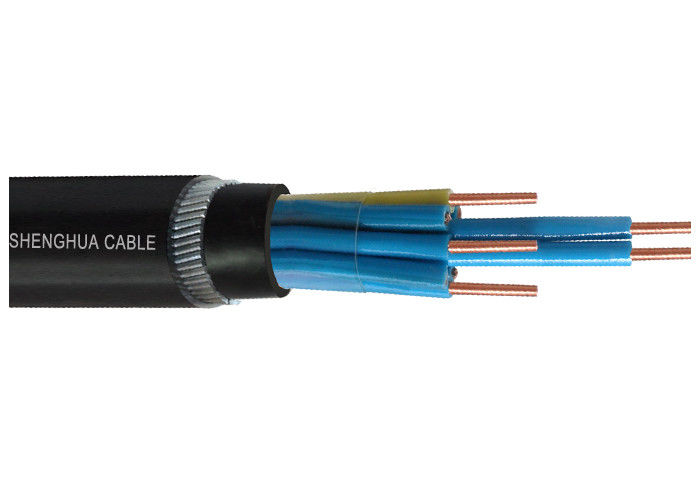

Multicore 450/750V Armoured Electrical Cable Steel Wire Armored PVC Insulated Copper Control Cable
  • nama
  • nama
  • nama
  • nama

Multicore 450/750V Armoured Electrical Cable Steel Wire Armored PVC Insulated Copper Control Cable

Jumlah Pesanan Minimum: 1000 meter
harga: US$0.31~52 per Meter
kemasan standar: drums
Periode pengiriman: 10 hari
metode pembayaran: T/T, L/C
Kapasitas Pasokan: 15.000 KM/bulan
Rincian Informasi
Deskripsi produk
Informasi Rinci
Tempat asal
Cina
Nama merek
QINGDAO YICABLE CABLE
Sertifikasi
ISO,CE,IEC,TUV,KEMA
Jenis kabel:
Kabel Kontrol tembaga
Tegangan pengenal:
450 / 750V
Isolasi:
PVC
Konduktor:
Tembaga
Zirah:
Galvanized Steel Wire
Persilangan:
0.75mm2 ~ 6mm2
Core:
2 ~ 61
Sampel gratis:
tersedia
Menyoroti:

armored electrical wire

,

armored cable wiring

Deskripsi produk

Multicore 450/750V Armoured Electrical Cable Steel Wire Armored PVC Insulated Copper Control Cable



Construction:



Conductor Compact Stranded Copper Conductor, Class 2 as per IEC 60228
Circular solid Copper Conductor, Class 1 as per IEC 60228
Flexible Stranded Copper Conductor, Class 5 as per IEC 60228
Insulation PVC
Metalic Shield Copper Tape Screen or Copper wire & copper tape Shield (optional)
Filler Fillers strip
Wrapping Tape Non woven wrapping tape or lsoh wrapping tape
Inner Covering Extruded PVC
Armour Steel Tape Armour, Steel Wire or Aluminium Wire Armor optional
Overall Sheath PVC, FR-PVC, PE or LSOH





Application:



This kind of cable could be used in security or alarm device installation or in low voltage applications such as telephone extensions and cirsuits.








Standards:



Our products could be designed to comply with IEC standard or CE, DIN, VDE, BS, AS, GB, NZS, GOST, NFC, UL, ANSI standards as customer's request.




Product Features:



1) Min. Ambient temperature for installation: -90 ° C
2) Max. Normal continuous operating temperature: 250° C
3) Max. Permissible conductor temperature at short circuit (5s. At longest): 250° C
4) Permissible bending radius:
Single core: ≥ 20(d+D)± 5%
Three core: ≥ 15(d+D)± 5%







Multicore 450/750V Armoured Electrical Cable Steel Wire Armored PVC Insulated Copper Control Cable 0





PACKING AND SHIPPING:



We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.




AFTER-SERVICE COMMITMENT:


Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:

1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.

We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!

Shanghai Shenghua Cable (Group) Co., Ltd.
