YJLV22 26/35kV 3x400SQMM Armoured Electrical Cable High Tension XLPE Insulated PVC Sheathed Sta Al Cable

Jumlah Pesanan Minimum:	500 meter
harga:	US$ 0.37-121 / Meter
kemasan standar:	Drums kayu atau Baja
Periode pengiriman:	satu atau dua minggu
metode pembayaran:	T/T, L/C
Kapasitas Pasokan:	15.000 KM per Bulan

Rincian Informasi

Deskripsi produk

Informasi Rinci

Tempat asal

Cina

Nama merek

QINGDAO YICABLE CABLE

Sertifikasi

ISO,CE,IEC,TUV,KEMA

Produk Model:

Sta Al Kabel

Konduktor:

Aluminium, Al

Zirah bahan:

Baju besi baja tape

Isolasi:

XLPE

Core:

3 Cores

tegangan:

Ketegangan tinggi

Selubung Bahan:

PVC, PE, LSOH

Garansi:

Dua tahun

Sertifikat:

KEMA, tes Type

Standar:

IEC, BS, IS, VDE

Menyoroti:

armored electrical wire

armoured power cable

Deskripsi produk

YJLV22 26/35kV 3x400SQMM Armoured Electrical Cable High Tension XLPE Insulated PVC Sheathed Sta Al Cable

Application

XLPE insulated power cable is used in electric transmission and distribution system operation at rated voltage of 0.6/1,1.8/3,3.6/6,6/6,6/10,8.7/10,8.7/15,12/20,21/35,26/35kV.

Low and medium voltage under 10kV,high tension between 10 to 35kV.

Construction

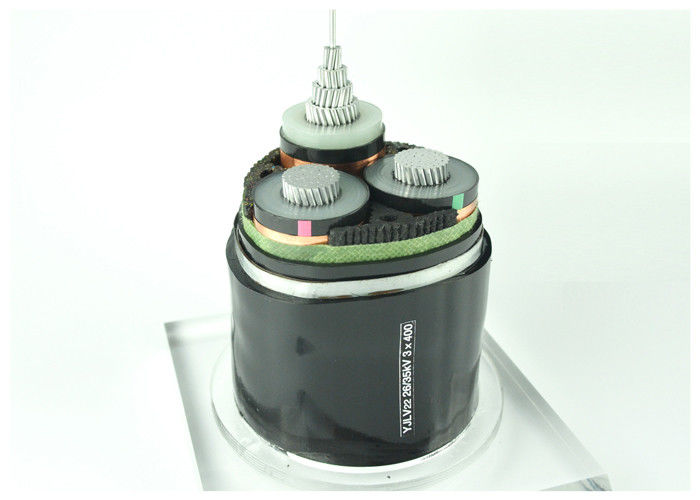

YJLV22 26/35kV 3x400SQMM Armoured Electrical Cable

1. Round bare aluminum core stranded according to IEC 60228
2. Inner semi-conductive layer
3. Core insulation XLPE
4. Color code according to HD 308 S2
5. Outer semi-conductive layer
6. Semi-conductive tape
7. Copper tape screen
8. Filler
9. PVC inner sheath
10. Galvanized steel tape armour (STA)
11. PVC outer sheath (red or black)

Code indentification:

YJ: XLPE insulation
L: Aluminum conductor
V: PVC sheath
32:Steel wire armoring—3 cores
22:Steel tape armoring—3 cores
72: Aluminum wire armoring—1 core
62: Stainless steel tape armoring—1 core
ZR: Flame resistant

Type	Desciption	Rated Voltage	NO. of Cores	Nomibal section(mm2)	Applications
YJV YJLV	Cu or Al conductor,XLPE insulated.PVC sheathed electric cable	0.6/1KV	1,2,3,4	1.5 to 400	For laying indoors and outdoors.The LV XLPE insulated power cable is used in transmission and distribution system at rated voltagae U(Um) ≤10KV.The HV XLPE insulated power cable refers to the power cable transmission between 10KV-35KV, it is often applied to the main road of power transmission. Able to bear certain traction during installation, but not external mechanical forces.
		0.6/1KV	3+1	3×4+1×2.5 to 3×400+1×185
		6/6kV	1,3	25 to 500
		8.7/10kV 8.7/15kV 12/20kV	1	25 to 500
		8.7/10kV 8.7/15kV 12/20kV	3	25 to 300
		21/35kv	1	50 to 500
YJV22 YJLV22	Cu or Al conductor,XLPE insulated steel tape armoured PVC sheathed electric cable	0.6/1KV	3	1.5 to 400	Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces.
		0.6/1KV	4	4 to 240
		6/6kV 8.7/10kV 8.7/15kV 12/20kV	3	25 to 300
		21/35kv	3	50 to 240

Technical data:

Maximum Conductor Temperature: under normal (90^OC), emergency (130^OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0^OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 15 x cable O.D for single core
12 x cable O.D for multi core

Test voltage	6 / 10 kV	[kV]	21 / 5 min.
	12 / 20 kV	[kV]	42 / 5 min.
	18 / 30 kV	[kV]	63 / 5 min.
Temperature range	in motion		-5°C till +70°C
	fixed		-20°C till +70°C
Operating temperature	short circuit	°C	250
Short circuit time	max.	[sec]	5
Bending radius	min.	x diameter	15
Flammability	standard		EN 60332-1-2

Standard

International: IEC 60502, IEC 60228

China: GB/T 12706

Other standards such as BS, DIN and ICEA upon request

Certificate

ISO,CE, KEMA ,IEC, RoHS, CCC, P3C

and more others at request

YJLV22 26/35kV 3x400SQMM Armoured Electrical Cable High Tension XLPE Insulated PVC Sheathed Sta Al Cable 0

This product is applicable to the power transmission and distribution line with AC rated voltage(U0/U) of 3.6/6kV-26/36kV system.It is routed in air (cable bridge frame,indoor wall support,and tray) and soil(direct buried, cable trench,pipe ect.) respectively according to difference of the protection layer structure.

Our Services

♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.

FAQ

1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc

2. Payment: We accept T/T, L/C , just choose what you like

3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.

4. MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.
