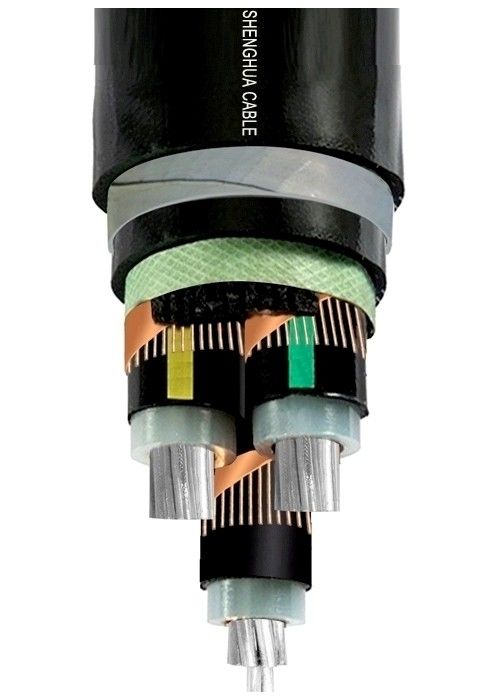

Copper Wire Shield STA Armoured Electrical Cable , Aluminum Conductor Cable

Tempat asal	Cina
Nama merek	QINGDAO YICABLE CABLE
Sertifikasi	ISO,CE,IEC,TUV,KEMA

Detail Produk

Jenis produk:

MV Al Kabel

Konduktor:

Al / Aluminium

Isolasi:

XLPE

Baja:

pita baja armoring

sreen:

Kabel tembaga

Core:

Tiga-Core

Selubung Bahan:

PVC / PE / LSOH

Standar:

IEC / BS / / VDE

Menyoroti:

armored electrical wire

armoured power cable

Syarat Pembayaran & Pengiriman

Kuantitas min Order

500 meter

Harga

US$0.5~120 per Meter

Kemasan rincian

Drum kayu atau Baja

Waktu pengiriman

10-15 hari

Syarat-syarat pembayaran

T/T, L/C

Menyediakan kemampuan

10.000 KM / Bulan

Deskripsi produk

Copper Wire Shield STA Armoured Electrical Cable , Aluminum Conductor Cable Technical data - Power cable according to DIN VDE 0276 part 603, HD 620, IEC 60502, BS 6622 - Temperature range max. to +90 °C - Temperature during installation from 0 °C to +70 °C - Short circuit temperature +250 °C (up to 5 seconds) - Nominal voltage Uo/U 3,6/6 kV, 6/10 kV, 6,35/11 kV (dle BS), 18/30 kV, 19/33 kV (dle BS) - Operating voltages 3,6/6 kV = max. 7,2 kV 6/10 kV = max. 12 kV 18/30 kV =
