Safe Insulated Sheathed Power Low Smoke Zero Halogen Cable , Fire Resistance Cable

Jumlah Pesanan Minimum:	500M
harga:	USD 0.5-50/meter
kemasan standar:	Fumigasi kayu drum
Periode pengiriman:	Sesuai jadwal
Kapasitas Pasokan:	18km per minggu

Rincian Informasi

Deskripsi produk

Informasi Rinci

Tempat asal

Cina

Nama merek

QINGDAO YICABLE CABLE

Sertifikasi

PCCC/ISOCE/KEMA/IEC

Tegangan pengenal:

0,6 / 1kV

Core:

1,2,3,4,5

Standar:

IEC60502-1, IEC61034, IEC60754, 60332,60331

Fungsi:

perlindungan lingkungan

Ukuran:

1.5-400mm2

Warna:

Disesuaikan

Paket:

Bebas

Menyoroti:

lszh power cable

xlpe lszh cable

Deskripsi produk

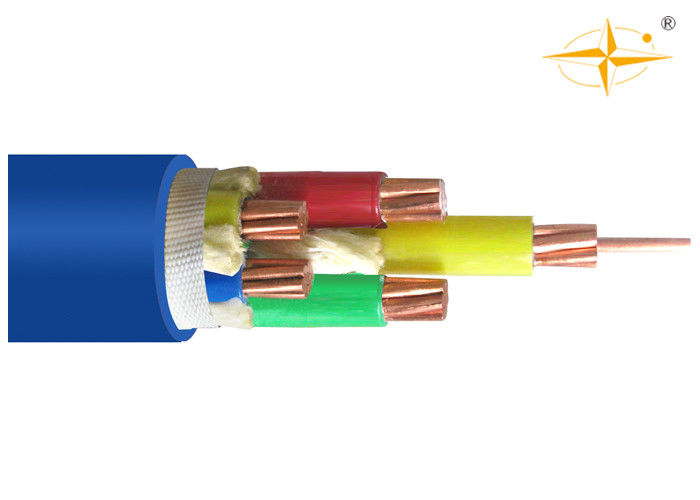

Safe Insulated Sheathed Power Low Smoke Zero Halogen Cable , Fire Resistance Cable

Conductor:

Class 1/2 annealed bare copper solid or strands. This wires are formed into final conductor in the stranding machines under strict quality surveillance.

Insulation:

Cross linked polyethylene compound or PVC is insulated over the conductors by extrusion process.

The raw materials and thicknesses of Insulation are maintained as per standards and conform to IEC60502/BS7870 Standards as the case may be.

XLPE:

Insulated Power Cable are identified either by colour or by numbers as follows:
No. of cores Identification
Old Colour coding New Colour coding as per BS
1 Red or Black Brown or Blue
2 Red & Black Brown, Blue
3 Red, Yellow Blue Brown, Black, Grey
4 Red, Yellow, Blue & Black Blue, Brown, Black, Grey
5 Red, Yellow, Blue, Black, Y/G Blue, Brown, Black, Grey & Y/G

Armour :

When armouring is required, the armour consists of single layer of galvanised steel wires/

galvanized steel tapes.The armour is applied helically as per standards.
Single core cables are armoured with Aluminium Wires or Copper wires based on requirement.

Outer sheath :

Standard cables are manufactured with Extruded black PVC. Outersheath is embossed or

printed with the information required by relevant standards.
Special FR, FRLS, FRRT, LSF, MDPE compounds are used for outersheathing of cables, to suit customer’s specific requirements.

Standards:

International: IEC 60502, IEC 60227 IEC 60331, IEC 61034

China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001

Other standards such as BS,DIN and ICEA upon request

Technical data:

Rated voltage: 0.6-KV

Max. Conductor Temp.:normal (90℃), short circuit no more than 5 s (the highest temperature of

conductor shall no more than 250°C )

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C

Min. Bending Radius: single core cable 20(d+D)±5% ,Multi-core cable 15(d+D)±5%

Type	Description	Cores	Nominal Cross Section
WDZA-YJY WDZB-YJY WDZC-YJY	Copper conductor/XLPE insulation Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm2
WDZA-YJY23 WDZB-YJY23 WDZC-YJY23	Copper conductor/XLPE insulation/Steel Tape Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm2
WDZA-YJY33 WDZB-YJY33 WDZC-YJY33	Copper conductor/XLPE insulation/Steel Wire Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm2
WDZA-YJLY WDZB-YJLY WDZC-YJLY	Aluminum conductor/XLPE insulation Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm2
WDZA-YJLY23 WDZB-YJLY23 WDZC-YJLY23	Aluminum conductor/XLPE insulation/Steel Tape Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm2
WDZA-YJLY33 WDZB-YJLY33 WDZC-YJY33	Aluminum conductor/XLPE insulation/Steel Wire Armored Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable	1, 2, 3, 4, 3+1, 5, 4+1, 3+2	1.5~800mm2

About Shenghua:

The biggest cable Manufacturer in China

Listed as No.2 of TOP 10 Cable Manufacturers

3 branch factories listed as Top 10 Cable Factories in China

Originated in 1950 and found in 1997

21 branch factories around China

80--available types of cables

600--sales branches and offices around the world

5000--Employees

1332000 m2--Total spaces
1100000 km--Annual output of cables
10000000000 RMB--Annual sales amount

Our Customers :

Safe Insulated Sheathed Power Low Smoke Zero Halogen Cable , Fire Resistance Cable 0

Our Parters :

Safe Insulated Sheathed Power Low Smoke Zero Halogen Cable , Fire Resistance Cable 1
