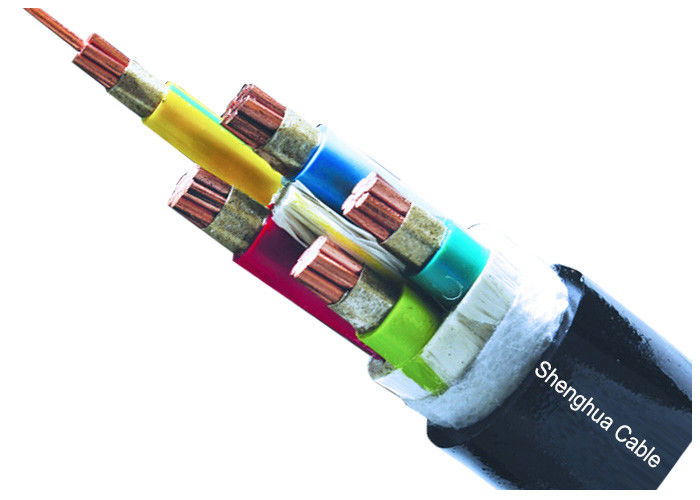

Fire Resistant No Halogen Power Cable Copper Conductor Power Cable Rated Voltage 0.6 / 1kV

Fire Resistant No Halogen Power Cable Copper Conductor Power Cable Rated Voltage 0.6 / 1kV

Jumlah Pesanan Minimum: 200m
harga: 0.38-25.6
kemasan standar: Kayu drum atau kasus
Periode pengiriman: Sebagai per schedual
metode pembayaran: L/C, T/T
Kapasitas Pasokan: 500 KM / Bulan
Informasi Rinci
Tempat asal
Cina
Nama merek
QINGDAO YICABLE CABLE
Sertifikasi
CE/KEMA
Bahan Isolasi:
XLPE/PVC
Tipe:
Rendah tegangan 0.6/1kV
warna isolasi:
Oranye atau opsional
Fungsi:
Tahan Api
Sampel:
Tersedia untuk 1-1,5 m
Aplikasi:
Transmisi daya
Menyoroti:

low smoke zero halogen wire

,

xlpe lszh cable

Deskripsi produk

Fire Resistant No Halogen Power CableCopper Conductor Power Cable Rated Voltage 0.6/1kV





Specifications

0.6/1kV N2XH (with mica glass tape)
Construction: ** Cu/MGT/XLPE/HFLS



Single core Halogen Free, Low Smoke and Fire Resistant Power cable

0.6/1kV N2XH (with mica glass tape)
Construction: ** Cu/MGT/XLPE/HFLS
Conductor: Solid or strand copper
Fire barrier: Mica glass tape (over conductor)
Insulation: XLPE
Outer sheath: Halogen free and low smoke
Standard: IEC60228, IEC60552, IEC60332

Number of cores x cross section Insulation thickness Sheath thickness Overall diameter Max. Conductor resistance Inductance
DC at 20°C AC at 70°C
No. xmm2 mm mm mm ohm/km ohm/km mH/Km
N2XH (Single Core Power Cables with Mica Glass Tape)
1 x 1.5 RE 0.7 1.4 6.2 12.1 15.4 0.458
1 x 1.5 RM 0.7 1.4 6.4 12.1 15.4 0.458
1 x 2.5 RE 0.7 1.4 6.6 7.41 9.45 0.439
1 x 2.5 RM 0.7 1.4 6.8 7.41 9.45 0.439
1 x 4 RE 0.7 1.4 7.0 4.61 5.88 0.420
1 x 4 RM 0.7 1.4 7.3 4.61 5.88 0.420
1 x 6 RE 0.7 1.4 7.5 3.08 3.93 0.394
1 x 6 RM 0.7 1.4 8.0 3.08 3.93 0.394
1 x 10 RE 0.7 1.4 8.3 1.83 2.33 0.366
1 x 10 RM 0.7 1.4 8.8 1.83 2.33 0.366
1 x 16 RM 0.7 1.4 10.0 1.15 1.47 0.341
1 x 25 RM 0.9 1.4 12.0 0.727 0.923 0.325
1 x 35 RM 0.9 1.4 13.0 0.524 0.668 0.311
1 x 50 RM 1.0 1.4 14.5 0.387 0.494 0.302
1 x 70 RM 1.1 1.5 16.5 0.268 0.342 0.291
1 x 95 RM 1.1 1.5 18.5 0.193 0.247 0.284
1 x 120 RM 1.2 1.6 20.5 0.153 0.196 0.279
