Orange Color Copper Conductor Low Smoke Zero Halogen Cable for Power Station

Orange Color Copper Conductor Low Smoke Zero Halogen Cable for Power Station

Jumlah Pesanan Minimum: 200m
harga: 0.38-25.6
kemasan standar: Kayu drum atau kasus
Periode pengiriman: Sebagai per schedual
metode pembayaran: L/C, T/T
Kapasitas Pasokan: 50KM/bulan
Informasi Rinci
Tempat asal
Cina
Nama merek
QINGDAO YICABLE CABLE
Sertifikasi
CE/KEMA
Suhu bekerja:
90 ℃
Tipe:
Rendah tegangan 0.6/1kV
warna isolasi:
Oranye atau opsional
Fungsi:
Tahan Api
Sampel:
1-1.5m
Aplikasi:
Power Station
Menyoroti:

low smoke zero halogen wire

,

lszh power cable

Deskripsi produk

Orange Color Copper Conductor Fire Resistive 600/1000V Power Cable IEC60502

Specifications

Fire Resistive Power Cable, Fire Rated Power Cable, Flame Retardant Power Cable

Specifications:

Conductor : Plain Annealed, Stranded Circular Non – Compacted or Circular Compacted or Shaped Copper
Fire Barrier : Mica Tape
Insulation : XLPE (For FR-200) or LSOH (For FR-300)
Sheath :

LSOH

Number of cores x cross section Insulation thickness Sheath thickness Overall diameter Max. Conductor resistance Inductance
DC at 20°C AC at 70°C
No. xmm2 mm mm mm ohm/km ohm/km mH/Km
N2XH (Single Core Power Cables with Mica Glass Tape)
1 x 1.5 RE 0.7 1.4 6.2 12.1 15.4 0.458
1 x 1.5 RM 0.7 1.4 6.4 12.1 15.4 0.458
1 x 2.5 RE 0.7 1.4 6.6 7.41 9.45 0.439
1 x 2.5 RM 0.7 1.4 6.8 7.41 9.45 0.439
1 x 4 RE 0.7 1.4 7.0 4.61 5.88 0.420
1 x 4 RM 0.7 1.4 7.3 4.61 5.88 0.420
1 x 6 RE 0.7 1.4 7.5 3.08 3.93 0.394
1 x 6 RM 0.7 1.4 8.0 3.08 3.93 0.394
1 x 10 RE 0.7 1.4 8.3 1.83 2.33 0.366
1 x 10 RM 0.7 1.4 8.8 1.83 2.33 0.366
1 x 16 RM 0.7 1.4 10.0 1.15 1.47 0.341
1 x 25 RM 0.9 1.4 12.0 0.727 0.923 0.325
1 x 35 RM 0.9 1.4 13.0 0.524 0.668 0.311
1 x 50 RM 1.0 1.4 14.5 0.387 0.494 0.302
1 x 70 RM 1.1 1.5 16.5 0.268 0.342 0.291
1 x 95 RM 1.1 1.5 18.5 0.193 0.247 0.284

1 x 120 RM

1.2 1.6 20.5 0.153 0.196 0.279

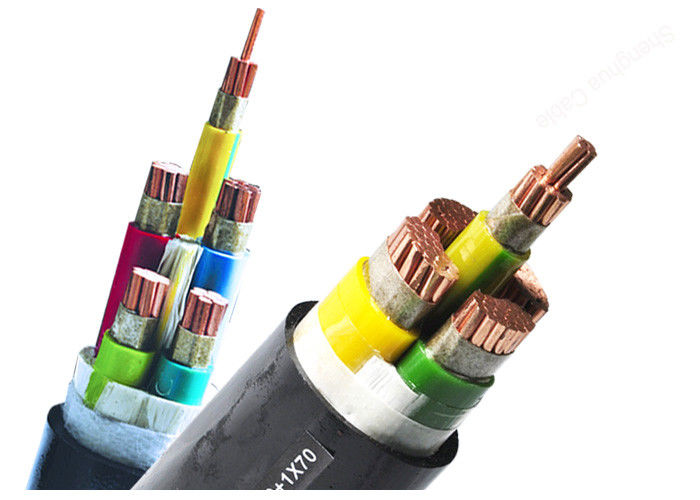

Orange Color Copper Conductor Low Smoke Zero Halogen Cable for Power Station 0

Note:
1. The models also contain fire-resistant type of low voltage power cable.
2. When signing the contract, the fire resistant type must be specified. For example, if type A is preferred, please add "A" to the end of "ZR", forming "ZRA", and A is usually used in places where the fire resistant property is highly required. B and C follow the same rule. In addition, if there is no letter after "ZR", the cable will be produced following "ZRC".

Quality Assurance:

With Yiteng, all cables are produced by strict inspection and testing:

1). Raw Material: Copper, Aluminium, PVC, PE and XLPE granules and all other materials for producing cables are all inspected carefully automatically. Only the qualified will be applied into cable production, the disqualified will be rejected.



2). Production Procedure: Cables are produced by advanced cable production machines.



3). Testing: Cables will not be packed until they are tested totally qualified. Cable Testing Machines includes Online Core Shift Detection Device, Tension Tester, Aging Test Chamber, Experimental Apparatus of Combustion, Insulation Resistance Tester and etc…
