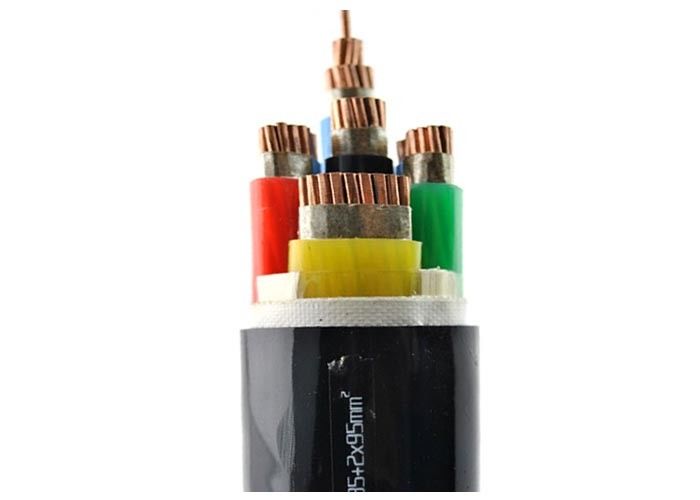

0.6/1 KV FRC XLPE / LSHF Fire Resistant Low Smoke Halogen Free Cable

0.6/1 KV FRC XLPE / LSHF Fire Resistant Low Smoke Halogen Free Cable

Jumlah Pesanan Minimum: 1000Meters
harga: US$1.0~120per meter
kemasan standar: Drum besi-kayu
Periode pengiriman: Tergantung pada jumlah pesanan
metode pembayaran: L/C, T/T
Kapasitas Pasokan: 30Kilometer / Bulan
Informasi Rinci
Tempat asal
Cina
Nama merek
QINGDAO YICABLE CABLE
Sertifikasi
KEMA,ISO,CE,IEC,PICC
Jenis konduktor:
Kelas Terdampar2
Core:
Muti-core
Bahan Isolasi:
XLPE
Jaket:
PVC
Tegangan pengenal:
600 / 1000V
Fungsi:
Tahan api
Menyoroti:

low smoke zero halogen wire

,

xlpe lszh cable

Deskripsi produk

0.6/1KV FRC-XLPE/LSHF Fire Resistant Low Smoke Halogen Free Cable





Scope of application: This item is applied for the alternating current circuitry with voltage (Uo/U) 0.6/1kV for the power supply.



Working conditions:

1) This maximum working temperature of the conductor is 70°C.

2) During having a short(lasting less than 5 seconds)the maximum temperature of the cable conductor for shall not be above 160°C.

3) Environment temperature should be no lower than 0°C for laying the cable;

4) Bending radius allowance of the cable;

single core cable: no steel tape cable 20D: steel tape cable 15D.

3 core cable: no steel tape cable 15D; steel tape cable 12D.



Main properties

No Test item Property
1 Construction Listed to the tables
2 Conductor resistance Listed to the tables
3 Voltage test A.C 3.5kV 5min No breaken
4 Mechanical properties before aging Tensile strength Insulation Min.12.5N/mm²
Sheath Min.12.5N/mm²
Elongation at break Insulation Min.150%
Sheath Min.150%
Mechanical properties after aging Tensile strength Insulation

100°C±2°C 7days

Min.±12.5N/mm²

Sheath

100°C±2°C 7days

Min.±12.5N/mm²

Varying valve of tensile strength Insulation

100°C±2°C 7days

Min.±25%

Sheath

100°C±2°C 7days

Min.±25%

Elongation at break Insulation

100°C±2°C 7days

Min.±150%

Sheath

100°C±2°C 7days

Min.±150%

Varying valve of tensile strength Insulation

100°C±2°C 7days

Min.±25%

Sheath

100°C±2°C 7days

Min.±25%

5 Flame-retardant property Comply with GB12666.5-90(CB) and IEC332-3(CB)
6 Constant of insulation resistivity Min at 20°C 36.7
Ki MΩ.km Min at 70°C 0.037



Our Services

1.Sufficient support for our tendering representatives.
2.OEM service available based on official & legal authorization.
3.Strict quality control system.
4.Faster lead time than our competitors.
5.Excellent quality with reasonable price.
6.Strong technical support (technical data, drawing, etc.)
7.Cable solutions to your particular requirements.
8.Free sample is available with economic express fee.
9.12 months quality guarantee after delivery.
