1000V Low Smoke Zero Halogen Fire Proof FR LSZH Cable With Mica Tape IEC60228

1000V Low Smoke Zero Halogen Fire Proof FR LSZH Cable With Mica Tape IEC60228

Jumlah Pesanan Minimum: 500M
harga: 0.5-50 USD
kemasan standar: Drum kayu besi
Periode pengiriman: 15 hari kerja
metode pembayaran: L / C, D / A, D / P, T / T
Kapasitas Pasokan: 5000 KM per Bulan
Informasi Rinci
Tempat asal
Cina
Nama merek
QINGDAO YICABLE CABLE
Sertifikasi
CE
Standar:
IEC60502. IEC60228
Konduktor:
Konduktor tembaga beruntai ringkas
Insulasi:
XLPE
Pita Pembungkus:
LSOH BendingTape
Sarung:
LSOH
Tegangan terukur:
0,6 / 1㎸
Menyoroti:

low smoke zero halogen wire

,

xlpe lszh cable

Deskripsi produk

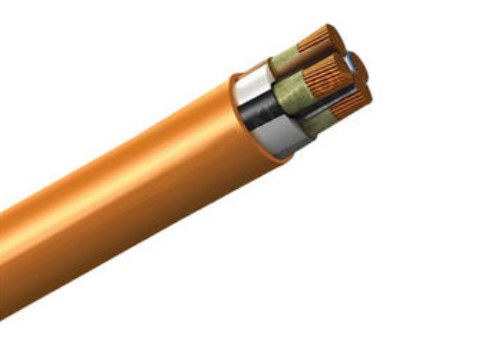

WDZAN_YJY 0.6/1kV CU/MICA/XLPE/LSOH



Construction

1 Conductor: Compactstranded copperconductor, Cl.2 as perlEC60228

(11 MicaTape

③lnsulation:XLPE(cross-linkedpolyethylene)ratedat90°C

(1111 Filler

(5: Wrapping Tape: LSOH BendingTape

⑥Sheath:LSOH,blackorothercolors,asperlEC60332,60502-1





Code Designation

YJ:XLPEinsulation Y: LSOH sheath



Applications

Forlaying indoors and outdoors.Able to bear certain traction during installation, but not extemal mechanical forces. Laying single core cable in magnetic ducts is not allowed.



Standards

lnternational: IEC60502. IEC60228, (lEC60332-3forFRcableonly) China: GB/T12706,(GB/T18380-3forFRcableonly)

Otherstandardssuchas BS, DIN andlCEAupon request



Technical data

Rated voltage: 0.6/ 1㎸

Maximum Conductor Temperature: under normal (90°C), emergency(130°C) or short circuit no more than5 s(250°C) conditions Min.Ambient Temp.-15°C,lnstallationTemp.0°C

Min.Bending Radius:20x cable 0.D or single core

15x cable 0.D for multicore







Produk
rincian produk
1000V Low Smoke Zero Halogen Fire Proof FR LSZH Cable With Mica Tape IEC60228
Jumlah Pesanan Minimum: 500M
harga: 0.5-50 USD
kemasan standar: Drum kayu besi
Periode pengiriman: 15 hari kerja
metode pembayaran: L / C, D / A, D / P, T / T
Kapasitas Pasokan: 5000 KM per Bulan
Informasi Rinci
Tempat asal
Cina
Nama merek
QINGDAO YICABLE CABLE
Sertifikasi
CE
Standar:
IEC60502. IEC60228
Konduktor:
Konduktor tembaga beruntai ringkas
Insulasi:
XLPE
Pita Pembungkus:
LSOH BendingTape
Sarung:
LSOH
Tegangan terukur:
0,6 / 1㎸
Kuantitas min Order:
500M
Harga:
0.5-50 USD
Kemasan rincian:
Drum kayu besi
Waktu pengiriman:
15 hari kerja
Syarat-syarat pembayaran:
L / C, D / A, D / P, T / T
Menyediakan kemampuan:
5000 KM per Bulan
Menyoroti

low smoke zero halogen wire

,

xlpe lszh cable

Deskripsi produk

WDZAN_YJY 0.6/1kV CU/MICA/XLPE/LSOH



Construction

1 Conductor: Compactstranded copperconductor, Cl.2 as perlEC60228

(11 MicaTape

③lnsulation:XLPE(cross-linkedpolyethylene)ratedat90°C

(1111 Filler

(5: Wrapping Tape: LSOH BendingTape

⑥Sheath:LSOH,blackorothercolors,asperlEC60332,60502-1





Code Designation

YJ:XLPEinsulation Y: LSOH sheath



Applications

Forlaying indoors and outdoors.Able to bear certain traction during installation, but not extemal mechanical forces. Laying single core cable in magnetic ducts is not allowed.



Standards

lnternational: IEC60502. IEC60228, (lEC60332-3forFRcableonly) China: GB/T12706,(GB/T18380-3forFRcableonly)

Otherstandardssuchas BS, DIN andlCEAupon request



Technical data

Rated voltage: 0.6/ 1㎸

Maximum Conductor Temperature: under normal (90°C), emergency(130°C) or short circuit no more than5 s(250°C) conditions Min.Ambient Temp.-15°C,lnstallationTemp.0°C

Min.Bending Radius:20x cable 0.D or single core

15x cable 0.D for multicore
