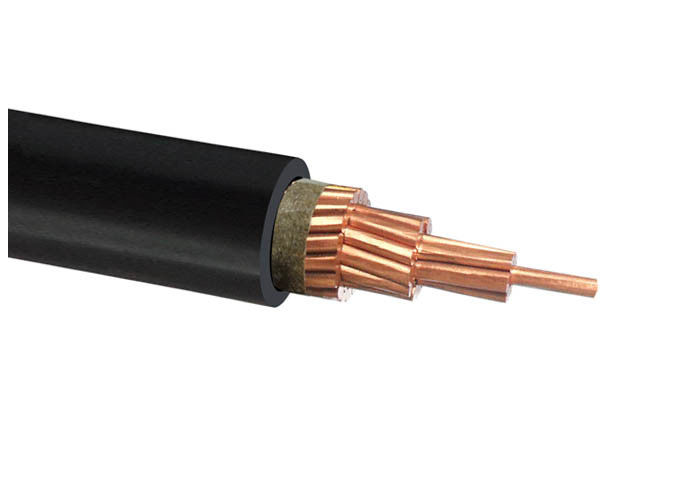

2.5mm2 - 300mm2 FRC Fire Resistant XLPE LSZH Sheathed Single Core Low Smoke Cable

2.5mm2 - 300mm2 FRC Fire Resistant XLPE LSZH Sheathed Single Core Low Smoke Cable

Jumlah Pesanan Minimum: 500M
harga: 0.5-50 USD
kemasan standar: Drum kayu besi
Periode pengiriman: 15 hari kerja
metode pembayaran: L / C, D / A, D / P, T / T
Kapasitas Pasokan: 5000 KM per bulan
Informasi Rinci
Tempat asal
Cina
Nama merek
QINGDAO YICABLE CABLE
Sertifikasi
CE/KEMA
Konduktor:
Tembaga
Isolasi:
XLPE
Pita Pembungkus:
LSOH BendingTape
Sarung:
LSOH
Tegangan pengenal:
1KV 10KV 15KV 20KV 35KV
Core No.:
Inti tunggal
Menyoroti:

low smoke zero halogen wire

,

xlpe lszh cable

Deskripsi produk

2 Core 0.6/1kV CU/MICA/XLPE/LSOH Fire Resistant Cable Environmental Cable



Construction

1 Conductor: Compactstranded copperconductor, Cl.2 as perlEC60228

(11 MicaTape

③ lnsulation:XLPE(cross-linkedpolyethylene)ratedat90°C

(1111 Filler

(5: Wrapping Tape: LSOH BendingTape

⑥ Sheath:LSOH,blackorothercolors,asperlEC60332,60502-1



Designation

YJ:XLPEinsulation Y: LSOH sheath



Applications

Forlaying indoors and outdoors.Able to bear certain traction during installation, but not extemal mechanical forces. Laying single core cable in magnetic ducts is not allowed.



Standards

lnternational: IEC60502. IEC60228, (lEC60332-3forFRcableonly) China: GB/T12706,(GB/T18380-3 for FR cable only)

Other standards such as BS, DIN and lCEAupon request



Technical data

Ratedvoltage: 0.6/ 1㎸

Maximum Conductor Temperature: under normal (90°C), emergency(130°C) or short circuit no more than5 s(250°C) conditions Min.AmbientTemp.-15°C,lnstallationTemp.0°C





Produk
rincian produk
2.5mm2 - 300mm2 FRC Fire Resistant XLPE LSZH Sheathed Single Core Low Smoke Cable
Jumlah Pesanan Minimum: 500M
harga: 0.5-50 USD
kemasan standar: Drum kayu besi
Periode pengiriman: 15 hari kerja
metode pembayaran: L / C, D / A, D / P, T / T
Kapasitas Pasokan: 5000 KM per bulan
Informasi Rinci
Tempat asal
Cina
Nama merek
QINGDAO YICABLE CABLE
Sertifikasi
CE/KEMA
Konduktor:
Tembaga
Isolasi:
XLPE
Pita Pembungkus:
LSOH BendingTape
Sarung:
LSOH
Tegangan pengenal:
1KV 10KV 15KV 20KV 35KV
Core No.:
Inti tunggal
Kuantitas min Order:
500M
Harga:
0.5-50 USD
Kemasan rincian:
Drum kayu besi
Waktu pengiriman:
15 hari kerja
Syarat-syarat pembayaran:
L / C, D / A, D / P, T / T
Menyediakan kemampuan:
5000 KM per bulan
Menyoroti

low smoke zero halogen wire

,

xlpe lszh cable

Deskripsi produk

2 Core 0.6/1kV CU/MICA/XLPE/LSOH Fire Resistant Cable Environmental Cable



Construction

1 Conductor: Compactstranded copperconductor, Cl.2 as perlEC60228

(11 MicaTape

③ lnsulation:XLPE(cross-linkedpolyethylene)ratedat90°C

(1111 Filler

(5: Wrapping Tape: LSOH BendingTape

⑥ Sheath:LSOH,blackorothercolors,asperlEC60332,60502-1



Designation

YJ:XLPEinsulation Y: LSOH sheath



Applications

Forlaying indoors and outdoors.Able to bear certain traction during installation, but not extemal mechanical forces. Laying single core cable in magnetic ducts is not allowed.



Standards

lnternational: IEC60502. IEC60228, (lEC60332-3forFRcableonly) China: GB/T12706,(GB/T18380-3 for FR cable only)

Other standards such as BS, DIN and lCEAupon request



Technical data

Ratedvoltage: 0.6/ 1㎸

Maximum Conductor Temperature: under normal (90°C), emergency(130°C) or short circuit no more than5 s(250°C) conditions Min.AmbientTemp.-15°C,lnstallationTemp.0°C
