Single Core 0.6/1KV Low Smoke Zero Halogen Cable 1.5 - 400 SQ MM Mica Tape
  • Single Core 0.6/1KV Low Smoke Zero Halogen Cable 1.5 - 400 SQ MM Mica Tape
  • Single Core 0.6/1KV Low Smoke Zero Halogen Cable 1.5 - 400 SQ MM Mica Tape

Single Core 0.6/1KV Low Smoke Zero Halogen Cable 1.5 - 400 SQ MM Mica Tape

Tempat asal Cina
Nama merek QINGDAO YICABLE CABLE
Sertifikasi CE, IEC
Detail Produk
Konduktor:
konduktor tembaga
Tape:
Mica Tape
Isolasi:
XLPE
Pita pembungkus:
LSOH pita lentur
Standar:
IEC60332, IEC60502
Menyoroti:

low smoke zero halogen wire

,

xlpe lszh cable

Payment & Shipping Terms
Kuantitas min Order
500M
Harga
0.1-99 USD/M
Kemasan rincian
Drum kayu besi
Waktu pengiriman
10 hari kerja
Syarat-syarat pembayaran
L / C, D / A, D / P, T / T
Menyediakan kemampuan
5000 KM / Bulan
Deskripsi produk

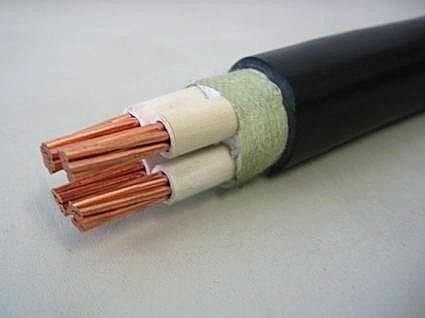

Construction

1 Conductor: Compact stranded copper conductor, Cl.2 as per lEC60228

(11 MicaTape

③lnsulation:XLPE(cross-linked polyethylene) rated at 90°C

(1111 Filler

(5: Wrapping Tape: LSOH BendingTape

⑥Sheath:LSOH,black or other colors,as per lEC60332,60502-1





Code Designation

YJ:XLPEinsulation Y: LSOH sheath







Standards

lnternational: IEC60502. IEC60228, (lEC60332-3forFRcableonly) China: GB/T12706,(GB/T18380-3 for FR cable only)

Other standards such as BS, DIN and lCEAupon request







Technical data

Ratedvoltage: 0.6/ 1㎸

Maximum Conductor Temperature: under normal (90°C), emergency(130°C) or short circuit no more than5 s(250°C) conditions Min.AmbientTemp.-15°C,lnstallationTemp.0°C







Tag:

asap rendah nol kawat halogen,

LSZH Kabel Daya,

kabel xlpe lszh
