0.6 / 1KV Four Cores LSOH Fire Resistant Cable 240 SQ MM IEC Copper XLPE Low Smoke Zero Halogen Wire
  • nama
  • nama
  • nama

0.6 / 1KV Four Cores LSOH Fire Resistant Cable 240 SQ MM IEC Copper XLPE Low Smoke Zero Halogen Wire

Jumlah Pesanan Minimum: 500M
harga: 0.1-99 USD/M
kemasan standar: Drum kayu besi
Periode pengiriman: 10 hari
metode pembayaran: L / C, D / A, D / P, T / T
Kapasitas Pasokan: 500 KM / Bulan
Rincian Informasi
Deskripsi produk
Informasi Rinci
Tempat asal
Cina
Nama merek
QINGDAO YICABLE CABLE
Sertifikasi
CE, IEC
Konduktor:
konduktor tembaga
Tape:
Mica Tape
Isolasi:
XLPE
Pita pembungkus:
LSOH pita perekat
Sarung:
LSOH
Warna:
hitam atau oranye
Menyoroti:

low smoke zero halogen wire

,

xlpe lszh cable

Deskripsi produk

0.6 / 1KV Four Cores LSOH Fire Resistant Cable 240 SQ MM IEC Copper XLPE Low Smoke Zero Halogen Cable



Specifications

Conductor : Plain Annealed, Stranded Circular Non – Compacted or Circular Compacted or Shaped Copper
Fire Barrier : Mica Tape
Insulation : XLPE (For FR-200) or LSOH (For FR-300)
Sheath : LSOH



Note:
1. The models also contain fire-resistant type of low voltage power cable.
2. When signing the contract, the fire resistant type must be specified. For example, if type A is preferred, please add "A" to the end of "ZR", forming "ZRA", and A is usually used in places where the fire resistant property is highly required. B and C follow the same rule. In addition, if there is no letter after "ZR", the cable will be produced following "ZRC".



Quality Assurance:

All cables are produced by strict inspection and testing:

1). Raw Material: Copper, Aluminium, PVC, PE and XLPE granules and all other materials for producing cables are all inspected carefully automatically. Only the qualified will be applied into cable production, the disqualified will be rejected.



2). Production Procedure: Cables are produced by advanced cable production machines.



3). Testing: Cables will not be packed until they are tested totally qualified. Cable Testing Machines includes Online Core Shift Detection Device, Tension Tester, Aging Test Chamber, Experimental Apparatus of Combustion, Insulation Resistance Tester and etc…

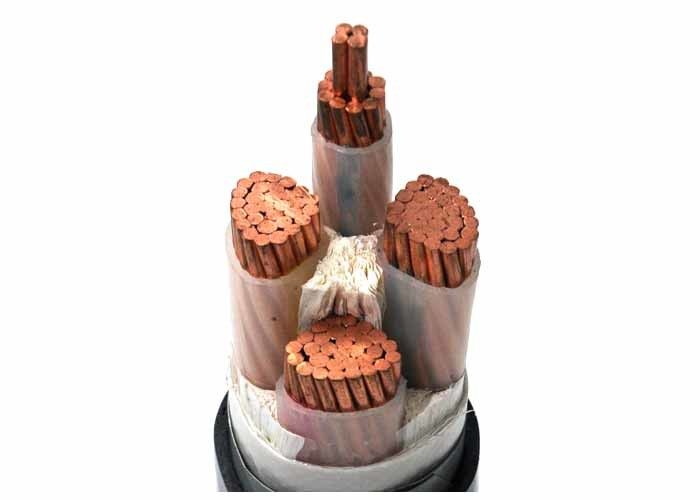

Construction

1 Conductor: Compact stranded copper conductor, Cl.2 as per lEC60228

(11 MicaTape

③lnsulation:XLPE(cross-linked polyethylene) rated at 90°C

(1111 Filler

(5: Wrapping Tape: LSOH BendingTape

⑥Sheath:LSOH,black or other colors,as per lEC60332,60502-1

0.6 / 1KV Four Cores LSOH Fire Resistant Cable 240 SQ MM IEC Copper XLPE Low Smoke Zero Halogen Wire 0
