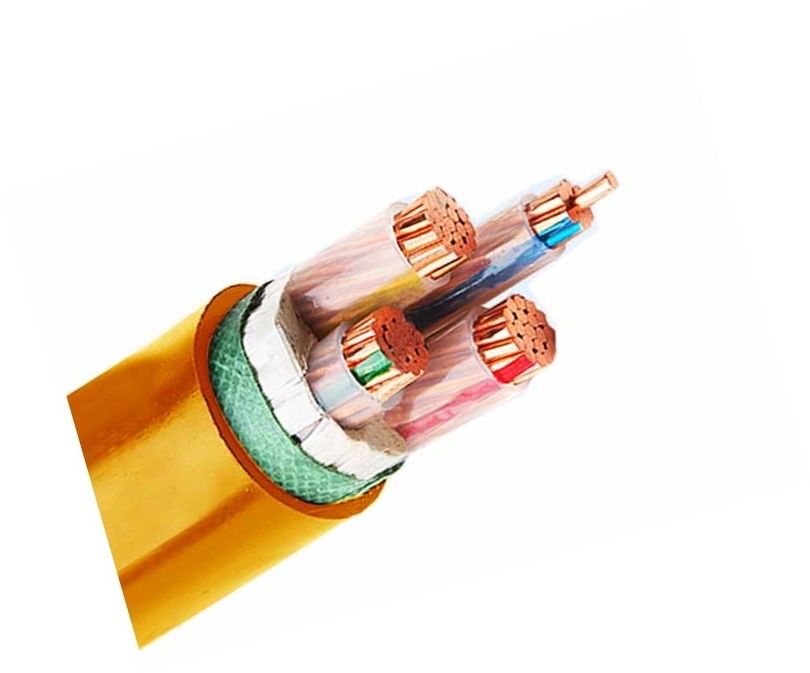

Fire Resistive Low Smoke Zero Halogen Cable Low Voltage Power Cable 0.6/1kV

Jumlah Pesanan Minimum:	300m
harga:	0.38-25.6
kemasan standar:	Kayu drum atau kasus
Periode pengiriman:	Sebagai per schedual
metode pembayaran:	L/C, T/T
Kapasitas Pasokan:	50KM/bulan

Rincian Informasi

Deskripsi produk

Informasi Rinci

Tempat asal

Cina

Nama merek

QINGDAO YICABLE CABLE

Sertifikasi

ROHS CE

Suhu bekerja:

90 ℃ (maks.)

Tipe:

Tegangan rendah 600 / 1000V

warna isolasi:

Oranye atau opsional

Fungsi:

Tahan Api

Sampel:

1-1.5m

Aplikasi:

dalam Ruangan, di terowongan, kabel parit, bawah tanah

Sertifikat:

CE KEMA VDE, IEC

Pengepakan:

Drum kayu dari baja

menandai kabel:

Tinta cetak

Menyoroti:

low smoke zero halogen wire

xlpe lszh cable

Deskripsi produk

0.6/1kV Low Smoke Halogen Free Cable Shanghai manufacturer CU/XLPE/LSZH ROHS CE Certified

. Application for Fire Resistive Power Cable, Fire Rated Power Cable

This cable is specially designed for areas where integrity of electrical circuit is critical to maintain the power supply. Application usage can be found in:- emergency lightings, control and power circuits, fire alarm systems, communication systems, lifts and escalators, power stations, underground tunnels, sewage treatment plans, high-rise buildings, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals,etc.

Specifications

Conductor	:	Plain Annealed, Stranded Circular Non – Compacted or Circular Compacted or Shaped Copper
Fire Barrier	:	Mica Tape
Insulation	:	XLPE (For FR-200) or LSOH (For FR-300)
Sheath	:	LSOH

2. Construction for Fire Resistive Power Cable, Fire Rated Power Cable

Conductor	:	Plain Annealed, Stranded Circular Non – Compacted or Circular Compacted or Shaped Copper
Fire Barrier	:	Mica Tape
Insulation	:	XLPE (For FR-200) or LSOH (For FR-300)
Sheath	:	LSOH
Insulation Colour	:	2C – Brown & Blue 3C – Brown, Black & Grey 4C – Brown, Black, Grey & Blue 2C+E – Brown, Blue + Green/Yellow 3C+E – Brown, Black, Grey + Green/Yellow 4C+E – Brown, Black, Grey, Blue + Green/Yellow 5C & above – White Cores Printed With Number

Note:
1. The models also contain fire-resistant type of low voltage power cable.
2. When signing the contract, the fire resistant type must be specified. For example, if type A is preferred, please add "A" to the end of "ZR", forming "ZRA", and A is usually used in places where the fire resistant property is highly required. B and C follow the same rule. In addition, if there is no letter after "ZR", the cable will be produced following "ZRC".

Fire Resistive Low Smoke Zero Halogen Cable Low Voltage Power Cable 0.6/1kV 0
