N2XH IEC60332-3 Multi - Core XLPE Low Smoke Zero Halogen Cable Copper Conductor

Jumlah Pesanan Minimum:	500M
harga:	USD 0.12-5.99/M
kemasan standar:	Baja Drum kayu
Periode pengiriman:	10 hari
metode pembayaran:	L/C, T/T
Kapasitas Pasokan:	60 KM / Hari

Rincian Informasi

Deskripsi produk

Informasi Rinci

Tempat asal

Cina

Nama merek

QINGDAO YICABLE CABLE

Sertifikasi

RoHS/KEMA/TUV/CE/ISO

Standar:

IEC60332-3, IEC60502-1

Sampel:

Bebas

Sarung kami:

LSZH

Temperatur Pengoperasian Konduktor:

90 ℃

Tegangan pengenal:

600 / 1000V

Warna:

Orange

panjang Drum:

sesuai kebutuhan

Aplikasi Kabel:

Distribusi tenaga

Menyoroti:

lszh power cable

xlpe lszh cable

Deskripsi produk

N2XH IEC60332-3 Multi-Core XLPE Low Smoke Halogen Free Power Cable Top China Manufacturer

Applications

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Construction

Conductor : Copper Conductor as per IEC 60228

≤6mm2 solid (class 1)

＞6mm2 stranded (class 2)

≥ 50mm2 Shaped conductoer optional

Insulation : PVC(polyvinyl chloride) rated at 75℃

Sheath : Low smoke zero halogen black or red or customization

Flame retardant: Avaliable as customization

Standards:

Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Mica Tape
Filler
Sheath: LSOH, black or other colors, as per IEC60332,60502-1

Technical data

Nom. Cross-section of conductor	Insulation Thickness	Sheath	Approx.	Approx	Max. D.C. Resistance of Conductor (20°C)	Test Voltage	Current Rating
mm2	mm	Thickness	O.D.	Weight	Ω/km	A.C	Current Rating
		mm	mm	kg/km		kV/5min	In air(A)	In soil(A)
4×1.5	0.7	1.8	14.4	241	12.1	3.5	20	27
4×2.5	0.7	1.8	15.4	295	7.41	3.5	26	35
4×4	0.7	1.8	16.5	369	4.61	3.5	34	45
4×6	0.7	1.8	17.8	463	3.08	3.5	43	57
4×10	0.7	1.8	20.9	667	1.83	3.5	60	77
4×16	0.7	1.8	23.4	930	1.15	3.5	83	105
4×25	0.9	1.8	27.1	1351	0.727	3.5	105	125
4×35	0.9	1.8	29.5	1772	0.524	3.5	125	155
4×50	1	1.9	38.4	2380	0.387	3.5	160	185
4×70	1.1	2	43.2	3302	0.268	3.5	200	225
4×95	1.1	2.2	47.3	4330	0.193	3.5	245	270
4×120	1.2	2.3	52.5	5374	0.153	3.5	285	310
4×150	1.4	2.5	58.3	6655	0.124	3.5	325	345
4×185	1.6	2.7	64.7	8246	0.0991	3.5	375	390
4×240	1.7	2.9	73.1	10569	0.0754	3.5	440	450

Certificates

ISO,CE, KEMA ,IEC, CCC, P3C and more others at request

Packing and shipping

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

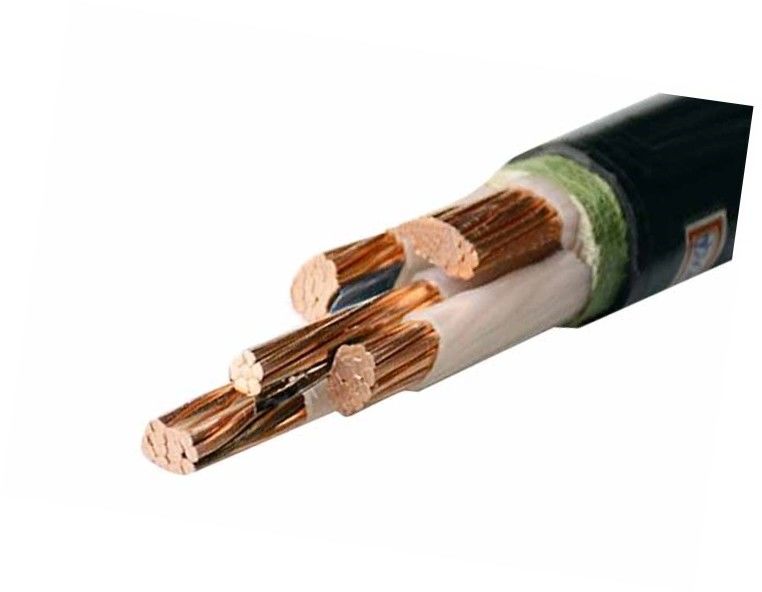

N2XH IEC60332-3 Multi - Core XLPE Low Smoke Zero Halogen Cable Copper Conductor 0
