Multicore Lszh Power Cables Environment Friendly With Orange Outer Sheath

Produk

kabel obor las

Hubungi kami

Mr. Aric

atwood.lee@hold-one.com

86-- 18724796885

Hubungi Sekarang

Multicore Lszh Power Cables Environment Friendly With Orange Outer Sheath

Jumlah Pesanan Minimum:	300m
harga:	USD 0.12-2.97/M
kemasan standar:	drum
Periode pengiriman:	7days
metode pembayaran:	L/C, T/T
Kapasitas Pasokan:	86000 KM / Hari

Rincian Informasi

Deskripsi produk

Informasi Rinci

Tempat asal

Cina

Nama merek

QINGDAO YICABLE CABLE

Sertifikasi

RoHS/KEMA/ISO./CE

uji Tegangan:

3500V

Jaket:

Bebas Asap Halogen Rendah

Sampel:

Freee

Garansi:

2 Tahun

Warna:

Orange

Suhu operasi:

90 derajat

Menyoroti:

lszh power cable

xlpe lszh cable

Deskripsi produk

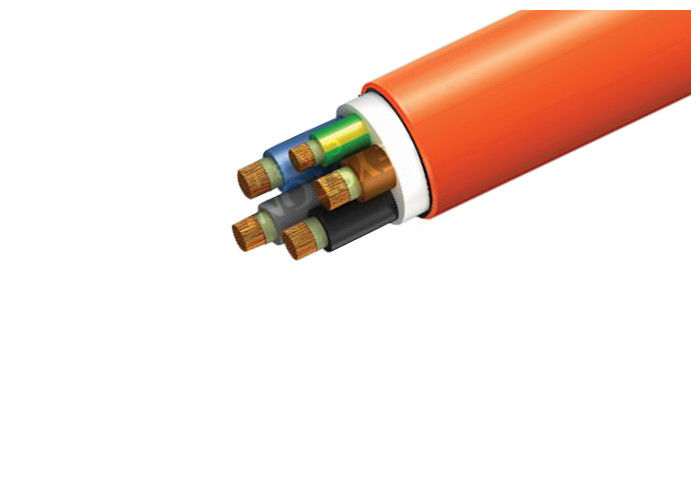

LSZH Power Cable LSOH Multi-Core Environment Friendly Orange Outer Sheath

Conductor: Class 1/2 annealed bare copper solid or strands. This wires are formed into final conductor in the stranding machines under strict quality surveillance.

Insulation: Cross linked polyethylene compound or PVC is insulated over the conductors by extrusion process.The raw materials and thicknesses of Insulation are maintained as per standards and conform to IEC60502/BS7870 Standards as the case may be.

XLPE:Insulated Power Cable are identified either by colour or by numbers as follows:
No. of cores Identification
Old Colour coding New Colour coding as per requirement

Armour : When armouring is required, the armour consists of single layer of galvanised steel wires/galvanized steel tapes.
The armour is applied helically as per standards.
Single core cables are armoured with Aluminium Wires or Copper wires based on requirement.

Outer sheath : Standard cables are manufactured with Extruded black PVC. Outersheath is embossed or printed with the information required by relevant standards.
Special FR, FRLS, FRRT, LSF, MDPE compounds are used for outersheathing of cables, to suit customer’s specific requirements.

Standards

International: IEC 60502, IEC 60227 IEC 60331, IEC 61034

China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 0.6-1kV

Max. Conductor Temp.:normal (90℃), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C

Min. Bending Radius: single core cable 20(d+D)±5% ,Multi-core cable 15(d+D)±5%

Multicore Lszh Power Cables Environment Friendly With Orange Outer Sheath 0
