PVC / XLPE Insulation Fire Resistant Power Cable 1.5 mm2 - 600 mm2 Eco Friendly
  • nama
  • nama
  • nama
  • nama

PVC / XLPE Insulation Fire Resistant Power Cable 1.5 mm2 - 600 mm2 Eco Friendly

Jumlah Pesanan Minimum: 200m
harga: USD0.03-50
kemasan standar: 100m / roll atau disesuaikan
Periode pengiriman: sesuai kebutuhan
Kapasitas Pasokan: 10 KM per minggu
Rincian Informasi
Deskripsi produk
Informasi Rinci
Tempat asal
Cina
Nama merek
QINGDAO YICABLE CABLE
Sertifikasi
CE/KEMA/ISO/PCCC
Tegangan pengenal:
600 / 1000V
Isolasi:
PVC / XLPE
Jumlah core:
1,2,3,4,5
Jaket warna:
Orange
Jaket:
PO atau FR-PVC
Sampel:
TERSEDIA
Bekerja di:
90℃
Menyoroti:

fire resistant wire

,

fire proof electrical cable

Deskripsi produk

PVC / XLPE Insulation Fire Resistant Power Cable 1.5 mm2 - 600 mm2 Eco Friendly



CU/Mica/XLPE/LSOH, IEC 60331



IEC 60502,60331 IEC 60227, IEC 60331, IEC 601034, IEC60754 GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001

CE, CCC, KEMA

Constructions

Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2

Insulation: XLPE/A

Inner Covering: LSOH

Sheath: LSOH , black

Note: Insulation color as per standards or customer requirement



Applications

Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.

Standards

International: IEC 60502, IEC 60227 IEC 60331, IEC 601034

China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001

Other standards such as BS,DIN and ICEA upon request



Technical data

Rated voltage: 0.6-KV

Max. Conductor Temp.: normal (90°C), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%



Certificates

CE, RoHS, CCC, KEMA and more others at request



Product Description:
- XLPE insulated PVC sheathed power cable (XLPE/PVC Cable)
- XLPE insulated steel tape armored PVC sheathed power cable (XLPE/STA/PVC Cable)
- XLPE insulated steel wire armored PVC sheathed power cable (XLPE/SWA/PVC Cable)
- Flame retardant XLPE insulated PVC sheathed power cable (FR/XLPE/PVC Cable)
- Flame retardant XLPE insulated steel tape armored PVC sheathed power cable (FR/XLPE/STA/PVC Cable)
- Flame retardant XLPE insulated steel wire armored PVC sheathed power cable (FR/XLPE/SWA/PVC Cable)
FR – Flame Retardant


It is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of  PVC insulated power cable. Power cables for power networks, underground, outdoors and in cable ducting. High voltage xlpe cable is used to be laid indoors, in tunnel, cable furrow or pipe, this cable couldn’t bear mechanical force outside. Laying single core cable in magnetic duct not permissible.

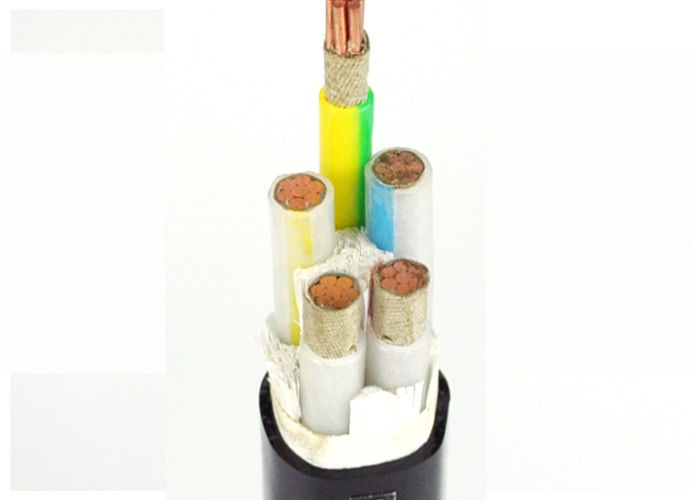

PVC / XLPE Insulation Fire Resistant Power Cable 1.5 mm2 - 600 mm2 Eco Friendly 0


PVC / XLPE Insulation Fire Resistant Power Cable 1.5 mm2 - 600 mm2 Eco Friendly 1
