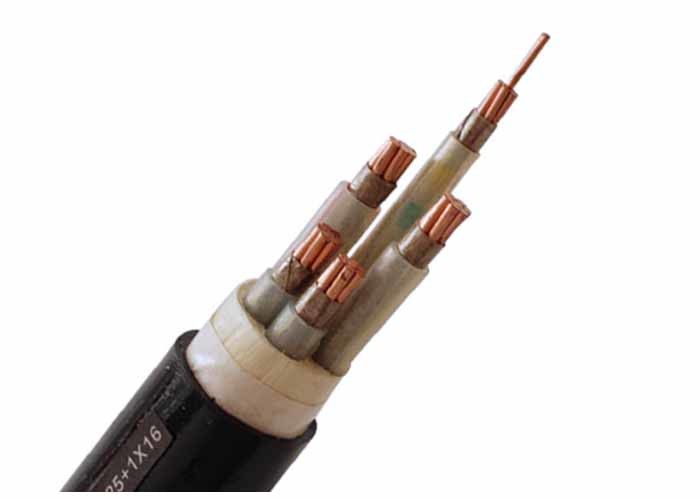

Five Cores Fire Resistant XLPE Insulated Electrical Cable With Earth WIre

Jumlah Pesanan Minimum:	200meters
harga:	US$0.65~500per meter
kemasan standar:	Menyegel drum kayu
Periode pengiriman:	Tergantung pada kuantitas

Rincian Informasi

Deskripsi produk

Informasi Rinci

Tempat asal

Cina

Nama merek

QINGDAO YICABLE CABLE

Sertifikasi

KEMA,ISO,CE,IEC,PICC

Kabel No.:

4 + 1 nilai

Struktur:

CU / XLPE / PVC

Layar bahan:

Mica Tape

Fungsi:

Tahan Api

Selubung warna:

Oranage

menandai:

Disesuaikan

Menyoroti:

fire resistant wire

fire proof electrical cable

Deskripsi produk

Five Cores Fire Resistant XLPE Insulated Electrical Cable With Earth WIre

1. Application

PVC insulated power cable has excellent electrical properties and chemical stability, it is suitable for fixed laying in power transmission and distribution lines with AC 50Hz and rated voltage below 1KV.

2. Standard: IEC 60502, IEC 60228, IEC 60332

3. Using Features

The long-term working temperature of conductor should be not more than 70oC ;

The maximum working temperature of conductor should be not more than 160oC while short-circuit.

The minimum bending radius of cable laying (D is diameter): single core unarmoured cable is 20D, multi-core unarmoured cable is 15D, single core armoured cable is 15D, multi-core armoured cable is 12D.

The environment temperature of cable laying should be not less than 0oC.

Technical parameter

Cross section of conductor	Thickness of insulation	Thickness of Sheath	Approx.cable diameter	Max.resistance of conductor at 20 ℃	Test Voltage(AC)
mm2	mm	mm	mm	ohm/km	KV/5min
5x2.5	0.8	1.8	13.6	7.41	3.5
5x4	1.0	1.8	16.1	4.61	3.5
5x6	1.0	1.8	17.7	3.08	3.5
5x10	1.0	1.8	21.0	1.83	3.5
5x16	1.0	1.8	23.8	1.15	3.5
5x25	1.2	1.8	28.7	0.73	3.5
5x35	1.2	1.9	32.0	0.524	3.5
5x50	1.4	2.1	37.4	0.387	3.5
5x70	1.4	2.2	41.7	0.268	3.5
5x95	1.6	2.4	48.1	0.193	3.5
5x120	1.6	2.5	53.0	0.153	3.5
5x150	1.8	2.7	58.6	0.124	3.5
5x185	2.0	2.9	65.1	0.0991	3.5
5x240	2.2	3.1	72.1	0.0754	3.5
5x300	2.4	3.4	80.1	0.060	3.5
5x400	2.6	3.6	87.0	0.0470	3.5

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 2-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Five Cores Fire Resistant XLPE Insulated Electrical Cable With Earth WIre 0
