CU / XLPE / PVC 0.6/1 kV fire retardant cable LSZH Power Cable For Buidings

Jumlah Pesanan Minimum:	1000 meter
harga:	US$2~110per meter
kemasan standar:	Drum kayu
Periode pengiriman:	7-15 hari
metode pembayaran:	L / C, D / A
Kapasitas Pasokan:	30 Kilometer / Bulan

Rincian Informasi

Deskripsi produk

Informasi Rinci

Tempat asal

Cina

Nama merek

QINGDAO YICABLE CABLE

Sertifikasi

KEMA,ISO,CE,IEC,PICC

nama model:

Kabel FRC 5C

Jenis konduktor:

Kelas Terdampar 2

Ukuran:

1.5-800mm2

Inti No.:

Lima

Garansi:

2 Tahun

Sampel gratis:

tersedia

Menyoroti:

fire rated cable

fire proof electrical cable

Deskripsi produk

CU/XLPE/PVC 0.6/1kV Fire Retardant LSZH Power Cable For Buidings

Applications:

It is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable. Power cables for power networks, underground, outdoors and in cable ducting. High voltage xlpe cable is used to be laid indoors, in tunnel, cable furrow or pipe, this cable couldn’t bear mechanical force outside. Laying single core cable in magnetic duct not permissible.

Standards:

International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)

China: GB/T 12706, (GB/T 18380-3 for FR-type only)

Other standards such as BS,DIN and ICEA upon request

Technical parameter

Cross section of conductor	Thickness of insulation	Thickness of Sheath	Approx.cable diameter	Max.resistance of conductor at 20 ℃	Test Voltage(AC)
mm2	mm	mm	mm	ohm/km	KV/5min
5x2.5	0.8	1.8	13.6	7.41	3.5
5x4	1.0	1.8	16.1	4.61	3.5
5x6	1.0	1.8	17.7	3.08	3.5
5x10	1.0	1.8	21.0	1.83	3.5
5x16	1.0	1.8	23.8	1.15	3.5
5x25	1.2	1.8	28.7	0.73	3.5
5x35	1.2	1.9	32.0	0.524	3.5
5x50	1.4	2.1	37.4	0.387	3.5
5x70	1.4	2.2	41.7	0.268	3.5
5x95	1.6	2.4	48.1	0.193	3.5
5x120	1.6	2.5	53.0	0.153	3.5
5x150	1.8	2.7	58.6	0.124	3.5
5x185	2.0	2.9	65.1	0.0991	3.5
5x240	2.2	3.1	72.1	0.0754	3.5
5x300	2.4	3.4	80.1	0.060	3.5
5x400	2.6	3.6	87.0	0.0470	3.5

Main Properties

No.	Test Item			Property
1	Construction			Listed to the tables
2	Conductor resistance			Listed to the tables
3	Test Voltage	A.C 3.5kV 5min		No breaken
4	Machenical Properties before aging	Tensile Strength	Insulation	Min. 12.5N/mm2
			Sheath	Min. 12.5N/mm2
		Elongation at break	Insulation	Min. 150%
			Sheath	Min. 150%
	Machenical properties after aging	Tensile Strength	Insulation	100℃±2℃7days Min. 12.5N/mm2
			Sheath	100℃±2℃7days Min. 12.5N/mm2
		Varying valve of tensile strength	Insulation	100℃±2℃7days Max. 25%
			Sheath	100℃±2℃7days Max. 25%
		Elongation at break	Insulation	100℃±2℃7days Min.150%
			Sheath	100℃±2℃7days Min.150%
		Varying valve of tensile strength	Insulation	100℃±2℃7days Max. 25%
			Sheath	100℃±2℃7days Max. 25%
5	Flame retardant property			IEC60332 - 3
6	Constant of insulation resistivity		Min at 20℃	36.7
	Ki MΩ.km		Min at 70℃	0.037

Working conditions:

1) This maximum working temperature of the conductor is 70°C.

2) During having a short(lasting less than 5 seconds)the maximum temperature of the cable conductor for shall not be above 160°C.

3) Environment temperature should be no lower than 0°C for laying the cable;

4) Bending radius allowance of the cable;

single core cable: no steel tape cable 20D: steel tape cable 15D.

3 core cable: no steel tape cable 15D; steel tape cable 12D.

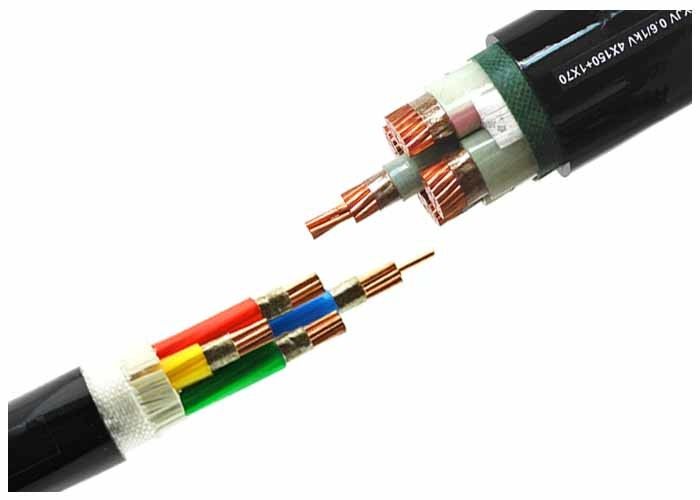

CU / XLPE / PVC 0.6/1 kV fire retardant cable LSZH Power Cable For Buidings 0
