Single-Core: Black,
2-Core: Brown & Black,
3-Core: Brown, Blue & Green/Yellow
4-Core: Brown, Blue, Black & Green/Yellow
5-Core: Brown, Blue, Black, Grey & Green/Yellow

Voltage Class:300/500V

Rated Temperature: Continuous working temperature under 70°C is allowed for the conductor

Standard: CCC is according with IEC60245-4 standard

CE is according with the EMC regulations of 2004/108/EC (low voltage procedures) the provisions of CE

Conductor Material: Stranded flexible fine twisted copper wire

Insulation Structure:Rubber or EPR

Core Wire Type: Centralized accordant

Sheath Material:Rubber or Neoprene

Application: This middle duty rubber cable is applied to the power connecting cable of electrical equipment and small electric tools

Package: Soft packing of a knitted woven cloth, carton, wooden plate or iron plate

Cross-Sectional Area mm2	Number diameter of core	Overall Diameter		Max.D.C resistance of at 20℃ MΩ/km		Approx Weight (kg/km)
Cross-Sectional Area mm2	Number diameter of core	min	max	Max.D.C resistance of at 20℃ MΩ/km		Approx Weight (kg/km)
2x0.3	16/0.15	4.3	5.8	69.2	71.2	30	31.5
2x0.5	28/0.15	4.8	6.4	39	40.1	43	45.5
3x0.3	16/0.15	4.6	6.1	69.2	71.2	36	38.5
3x0.5	28/0.15	5.1	6.7	39	40.1	74	77

Class 5 Copper Conducotor Rubber Sheathed Cable YCW Cable H07RN-F 0

Tag:

trs kabel fleksibel,

kabel selubung karet,

kawat berisolasi karet

Produk yang Direkomendasikan

Copper Conducotor Rubber Sheathed Cable, Kabel Listrik Karet 300 / 300V

Hubungi Sekarang

1.5mm - 400mm Kabel Fleksibel Karet 450 / 750V Dalam Kondisi Buruk

Hubungi Sekarang

Kabel Penambangan Karet Ramah Lingkungan, Kabel Terisolasi Karet Tegangan Rendah

Hubungi Sekarang

H05RN-F Karet Fleksibel Kabel Dilapisi Selubung Untuk Lingkungan Alkaline Asam Berminyak

Hubungi Sekarang

Karet Berat Model Kabel Berselubung, Kabel Insulasi Karet Dengan Core Fleksibel

Hubungi Sekarang

0.66 / 1.44KV Karet Kabel Konduktor Tembaga Perisai Seluler Fleksibel Untuk Penambangan

Hubungi Sekarang

8.7 / 15 KV Kabel Karet Flex Tahan Cuaca MYPTJ Ramah Lingkungan Untuk Alat Berat

Hubungi Sekarang

MC Mine Rubber Flexible Cable 6 OD Bending Radius Perlindungan Lingkungan

Hubungi Sekarang

Kustom MCP Mine Rubber Insulated Wire, Kabel Berselubung Karet Dengan Layar

Hubungi Sekarang

Mobile Shield Rubber Kabel Fleksibel Tegangan Rendah LV 0.66 / 1.14 KV MCP

Hubungi Sekarang

MCP Screened Rubber Insulated Wire Untuk Koneksi Daya Excavator

Hubungi Sekarang

rincian produk

Produk

Kabel Berisolasi XLPE

PVC Insulated Kabel

Kabel Mineral Terisolasi

Lapis baja Kabel Listrik

Kabel Kontrol Multicore

Kawat Inti Tunggal

Terlindung instrumen kabel

Low Smoke Kabel Nol Halogen

Api Tahan Kabel

kabel tahan api

Kabel Fleksibel Karet

Aerial Bundled Kabel

Bare Conductor

Kabel Listrik Fleksibel

kabel pv surya

Kabel Cabang Pracetak

Kabel Suhu Tinggi

Tembaga Clad Aluminium Kawat

Kabel Las Fleksibel

kabel obor las

Class 5 Copper Conducotor Rubber Sheathed Cable YCW Cable H07RN-F

Jumlah Pesanan Minimum:	1000m
harga:	USD 0.4 To 10.5 per Meter
kemasan standar:	kasus kayu
Periode pengiriman:	10-15 hari
Kapasitas Pasokan:	8 KM per Hari

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal

Cina

Nama merek

QINGDAO YICABLE CABLE

Sertifikasi

CE/KEMA/CCC/TUV

tegangan:

300 / 300V

Ukuran:

0.3mm2 atau 0.5mm2

Conducotor:

Tembaga fleksibel

Insualtion:

Karet

Bersarung:

Karet

Tempat asal:

Shanghai

Kuantitas min Order:

1000m

Harga:

USD 0.4 To 10.5 per Meter

Kemasan rincian:

kasus kayu

Waktu pengiriman:

10-15 hari

Menyediakan kemampuan:

8 KM per Hari

Menyoroti

trs flexible cable

rubber sheathed cable

Deskripsi produk

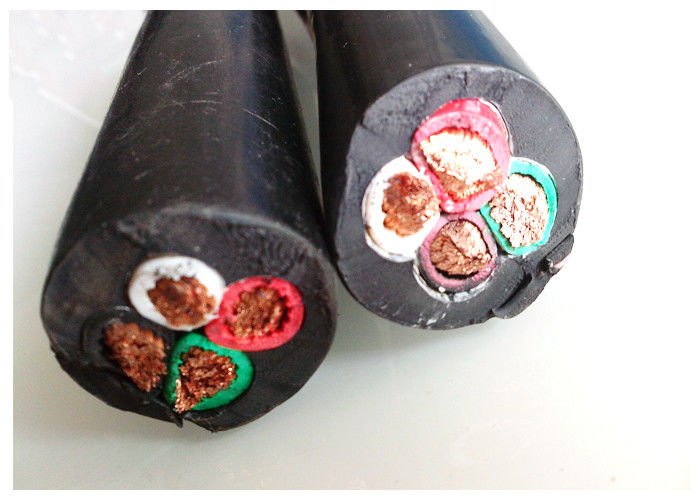

Class 5 Copper Conducotor Rubber Sheathed Cable YCW Cable H07RN-F

Construction:

Conductor: Flexible Class 5 Copper Conductor

Insualtion: Rubber Sheath

Sheath: Rubber Sheath

Application :

This flexible power cable can be installed either as a fixed or mobile cable under adverse conditions such as in oily, acidic or alkaline environment

Insulation Color:

Single-Core: Black,
2-Core: Brown & Black,
3-Core: Brown, Blue & Green/Yellow
4-Core: Brown, Blue, Black & Green/Yellow
5-Core: Brown, Blue, Black, Grey & Green/Yellow

Voltage Class:300/500V

Rated Temperature: Continuous working temperature under 70°C is allowed for the conductor

Standard: CCC is according with IEC60245-4 standard

CE is according with the EMC regulations of 2004/108/EC (low voltage procedures) the provisions of CE

Conductor Material: Stranded flexible fine twisted copper wire

Insulation Structure:Rubber or EPR

Core Wire Type: Centralized accordant

Sheath Material:Rubber or Neoprene

Application: This middle duty rubber cable is applied to the power connecting cable of electrical equipment and small electric tools

Package: Soft packing of a knitted woven cloth, carton, wooden plate or iron plate

Cross-Sectional Area mm2	Number diameter of core	Overall Diameter		Max.D.C resistance of at 20℃ MΩ/km		Approx Weight (kg/km)
Cross-Sectional Area mm2	Number diameter of core	min	max	Max.D.C resistance of at 20℃ MΩ/km		Approx Weight (kg/km)
2x0.3	16/0.15	4.3	5.8	69.2	71.2	30	31.5
2x0.5	28/0.15	4.8	6.4	39	40.1	43	45.5
3x0.3	16/0.15	4.6	6.1	69.2	71.2	36	38.5
3x0.5	28/0.15	5.1	6.7	39	40.1	74	77

Class 5 Copper Conducotor Rubber Sheathed Cable YCW Cable H07RN-F 0
