3 Phase Conductor Aerial Bundled Cable 5 Core Tahan Korosi Luar Biasa
Deskripsi
Kabel bundel udara yang dirancang untuk saluran distribusi overhead memiliki messenger netral berisolasi yang terbuat dari AAAC, yang konduktor aluminium fase terisolasi secara heliks terluka di atasnya. Kabel diberi peringkat 0,6 / 1 (1,2) kV dan sesuai dengan IEC60502.
Konstruksi
a) Fase - Konduktor fase harus dari konduktor aluminium Kondisi H68 dan untai melingkar yang dipadatkan.
b) Netral atau kurir - Konduktor netral atau kurir harus dari konduktor paduan aluminium dan untai sirkular yang dipadatkan c) Penerangan Jalan- Konduktor penerangan jalan harus konduktor aluminium kondisi H68 dan konduktor melingkar yang dipilin ..
Fase, konduktor netral harus diekstrusi dengan XLPE sebagai insulasi.
Jadwal keterangan teknis
Konduktor fase | |||||||||
Area penampang nominal | mm² | 25 | 35 | 50 | 70 | 95 | 120 | 150 | 185 |
Jumlah inti | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
Jumlah minimum kabel | 6 | 6 | 6 | 12 | 15 | 15 | 30 | 30 | |
Ketebalan insulasi nominal | mm | 1.2 | 1.2 | 1.4 | 1.4 | 1.6 | 1.6 | 1.8 | 2.0 |
Diameter inti berinsulasi | mm | 8.5 | 9.5 | 11.2 | 13.0 | 15.1 | 16.6 | 18.4 | 20.6 |
Maks. Resistensi DC pada 20 ℃ | ohm / km | 1.20 | 0,868 | 0,641 | 0,443 | 0,320 | 0,253 | 0,206 | 0,164 |
Peringkat saat ini masih angin, sekitar | SEBUAH | 84 | 104 | 129 | 167 | 209 | 246 | 283 | 332 |
suhu = 30 ℃ | |||||||||
Temperatur konduktor = 75 ℃ | |||||||||
Konduktor messenger | |||||||||
Area penampang nominal | mm² | 25 | 25 | 35 | 50 | 70 | 70 | 95 | 120 |
Jumlah minimum kabel | 6 | 6 | 6 | 6 | 12 | 12 | 15 | 15 | |
Ketebalan insulasi nominal | mm | 1.2 | 1.2 | 1.2 | 1.4 | 1.4 | 1.4 | 1.6 | 1.6 |
Diameter inti berinsulasi | mm | 8.5 | 8.5 | 9.5 | 11.2 | 13.1 | 13.1 | 15.1 | 16.6 |
Maks. Resistensi DC pada 20 ℃ | ohm / km | 1.312 | 1.312 | 0,943 | 0,693 | 0,469 | 0,469 | 0,349 | 0,273 |
Beban putus yang dihitung | kN | 6.4 | 6.4 | 8.9 | 12.1 | 18.0 | 18.0 | 24.2 | 30.8 |
Konduktor penerangan jalan | |||||||||
Area penampang nominal | mm² | 25 | 25 | 35 | 50 | 70 | 70 | 95 | 120 |
Jumlah minimum kabel | 6 | 6 | 6 | 6 | 12 | 12 | 15 | 15 | |
Ketebalan insulasi nominal | mm | 1.2 | 1.2 | 1.2 | 1.4 | 1.4 | 1.4 | 1.6 | 1.6 |
Diameter inti berinsulasi | mm | 8.5 | 8.5 | 9.5 | 11.2 | 13.1 | 13.1 | 15.1 | 16.6 |
Maks. Resistensi DC pada 20 ℃ | ohm / km | 1.312 | 1.312 | 0,943 | 0,693 | 0,469 | 0,469 | 0,349 | 0,273 |
Kabel lengkap | |||||||||
Perkiraan. diameter keseluruhan | mm | 23.2 | 25.6 | 30.0 | 34.9 | 40.6 | 44.1 | 49.2 | 54.9 |
Perkiraan. berat kabel | kg / km | 470 | 560 | 740 | 980 | 1330 | 1580 | 1940 | 2410 |
Panjang pengepakan | m / drum | 1000 | 1000 | 1000 | 1000 | 500 | 500 | 500 | 500 |
STANDAR NF C 33-209
NFA 2X
Fase | Netral / Messenger | ||||||||
Jalur Distribusi | Pub Petir | ||||||||
Jenis Kabel | Jumlah | Jumlah | Rata | Perlawanan | Jumlah | Konduktansi | Rata | Dinilai | Perlawanan |
inti | kawat | diameter | pada 20 ℃ | inti | pada 30 ℃ | diameter | Kekuatan | pada 20 ℃ | |
mm² | mm² | PCS | mm | ohm / km | mm² | SEBUAH | mm | kN | ohm / km |
2x16 | 2x16 | 7 | 4.6 | 1.91 | - | - | - | - | - |
2x35 | 2x35 | 7 | 5.9 | 1.20 | - | - | - | - | - |
2x35 | 2x35 | 7 | 6.9 | 0,868 | - | - | - | - | - |
2x50 | 2x50 | 7 | 8.1 | 0,641 | - | - | - | - | - |
4x16 | 4x16 | 7 | 4.6 | 1.91 | - | - | - | - | - |
4x25 | 4x25 | 7 | 5.9 | 1.20 | - | - | - | - | - |
4x35 | 4x35 | 7 | 6.9 | 0,868 | - | - | - | - | - |
3x25 + 54,6 | 3x25 | 7 | 5.9 | 1.20 | - | - | 9.6 | 16.0 | 0,63 |
3x25 + 1x16 + 54,6 | 3x25 | 7 | 5.9 | 1.20 | 1x16 | 60 | 9.6 | 16.0 | 0,63 |
3x25 + 2x16 + 54.6 | 3x25 | 7 | 5.9 | 1.20 | 2x16 | 9.6 | 16.0 | 0,63 | |
3x35 + 54,6 | 3x35 | 7 | 6.9 | 0,868 | - | - | 9.6 | 16.0 | 0,63 |
3x35 + 1x16 + 54,6 | 3x35 | 7 | 6.9 | 0,868 | 1x16 | 60 | 9.6 | 16.0 | 0,63 |
3x35 + 2x16 + 54.6 | 3x35 | 7 | 6.9 | 0,868 | 2x16 | 9.6 | 16.0 | 0,63 | |
3x50 + 54,6 | 3x50 | 7 | 8.1 | 0,641 | - | - | 9.6 | 16.0 | 0,63 |
3x50 + 1x16 + 54,6 | 3x50 | 7 | 8.1 | 0,641 | 1x16 | 60 | 9.6 | 16.0 | 0,63 |
3x50 + 2x16 + 54.6 | 3x50 | 7 | 8.1 | 0,641 | 2x16 | 9.6 | 16.0 | 0,63 | |
3x70 + 54,6 | 3x70 | 12 | 9.7 | 0,443 | - | - | 9.6 | 16.0 | 0,63 |
3x70 + 1x16 + 54,6 | 3x70 | 12 | 9.7 | 0,443 | 1x16 | 60 | 9.6 | 16.0 | 0,63 |
3x70 + 2x16 + 54.6 | 3x70 | 12 | 9.7 | 0,443 | 2x16 | 9.6 | 16.0 | 0,63 | |
3x70 + 1x25 + 54,6 | 3x70 | 12 | 9.7 | 0,443 | 1x25 | 9.6 | 16.0 | 0,63 | |
3x70 + 2x25 + 54.6 | 3x70 | 12 | 9.7 | 0,443 | 2x25 | 9.6 | 16.0 | 0,50 | |
3x70 + 70 | 3x70 | 12 | 9.7 | 0,443 | - | - | 10.2 | 20.6 | 0,50 |
3x70 + 1x16 + 70 | 3x70 | 12 | 9.7 | 0,443 | 1x16 | 60 | 10.2 | 20.6 | 0,50 |
3x70 + 2x16 + 70 | 3x70 | 12 | 9.7 | 0,443 | 2x16 | 10.2 | 20.6 | 0,50 | |
3x95 + 70 | 3x95 | 12 | 11.5 | 0,320 | - | - | 10.2 | 20.6 | 0,50 |
3x95 + 1x16 + 70 | 3x95 | 12 | 11.5 | 0,320 | 1x16 | 60 | 10.2 | 20.6 | 0,50 |
3x95 + 2x16 + 70 | 3x95 | 12 | 11.5 | 0,320 | 2x16 | 10.2 | 20.6 | 0,50 | |
3x120 + 70 | 3x120 | 12 | 12.8 | 0,253 | - | - | 10.2 | 20.6 | 0,50 |
3x120 + 1x16 + 70 | 3x120 | 19 | 12.8 | 0,253 | 1x16 | 10.2 | 20.6 | 0,50 | |
3x120 + 2x16 + 70 | 3x120 | 19 | 12.8 | 0,253 | 2x16 | 60 | 10.2 | 20.6 | 0,50 |
3x150 + 70 | 3x150 | 19 | 14.5 | 0,206 | - | 10.2 | 20.6 | 0,50 | |
3x150 + 1x16 + 70 | 3x150 | 19 | 14.5 | 0,206 | 1x16 | - | 10.2 | 20.6 | 0,50 |
3x150 + 2x16 + 70 | 3x150 | 19 | 14.5 | 0,206 | 2x16 | 60 | 10.2 | 20.6 | 0,50 |
3x120 + 95 | 3x120 | 19 | 12.8 | 0,253 | - | 12.9 | 27.9 | 0,343 | |
3x120 + 1x16 + 95 | 3x120 | 19 | 12.8 | 0,253 | 1x16 | - | 12.9 | 27.9 | 0,343 |
3x120 + 2x16 + 95 | 3x120 | 19 | 12.8 | 0,253 | 2x16 | 60 | 12.9 | 27.9 | 0,343 |
3x150 + 95 | 3x150 | 19 | 14.5 | 0,206 | - | 12.9 | 27.9 | 0,343 | |
3x150 + 1x16 + 95 | 3x150 | 19 | 14.5 | 0,206 | 1x16 | - | 12.9 | 27.9 | 0,343 |
3x150 + 2x16 + 95 | 3x150 | 19 | 14.5 | 0,206 | 2x16 | 60 | 12.9 | 27.9 | 0,343 |

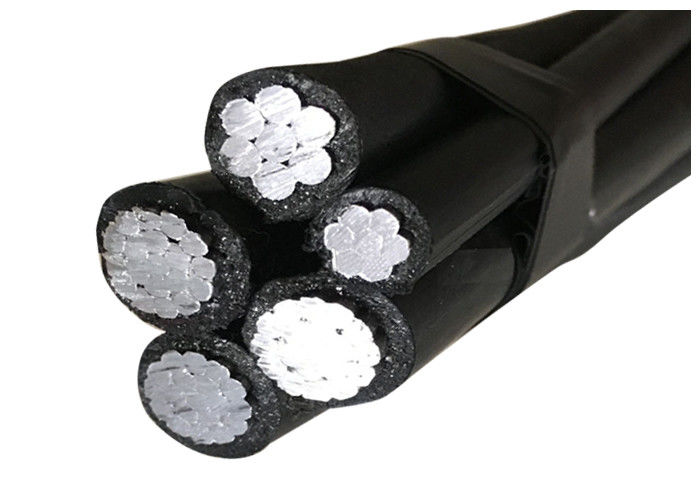

Kabel Bundel Udara dengan Konduktor Penerangan Jalan
3 konduktor fase + 1 konduktor Messenger + 1 konduktor penerangan jalan
