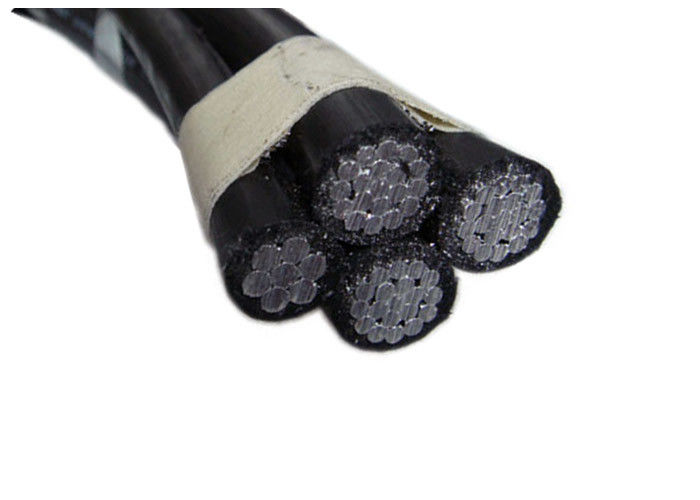

0,6 / 1 (1,2) kV AL / XLPE (PE) Terisolasi
Kabel Bundel Udara dengan Konduktor Penerangan Jalan
Deskripsi : 3 konduktor fase + 1 Konduktor messenger + 1 konduktor penerangan jalan
Kabel bundel udara yang dirancang untuk saluran distribusi overhead memiliki messenger netral berisolasi yang terbuat dari AAAC, yang konduktor aluminium fase terisolasi secara heliks terluka di atasnya. Kabel diberi peringkat 0,6 / 1 (1,2) kV dan sesuai dengan IEC60502.
Konstruksi
a) Fase - Konduktor fase harus dari konduktor aluminium Kondisi H68 dan untai melingkar yang dipadatkan.
b) Netral atau kurir - Konduktor netral atau kurir harus dari konduktor paduan aluminium dan untai sirkular yang dipadatkan c) Penerangan Jalan- Konduktor penerangan jalan harus konduktor aluminium kondisi H68 dan konduktor melingkar yang dipilin ..
Fase, konduktor netral harus diekstrusi dengan polietilen (PE) sebagai insulasi.
STANDAR TS 11654
AER
Kabel Berinsulasi | Porter | Kabel lengkap | |||||||||||||
Jumlah | Jalur Distribusi Utama | Str. Petir | |||||||||||||
Konduktor Cross | Jumlah | Jumlah | Diameter | Perlawanan | Arus | Jumlah | Arus | Diameter | Min. Tarik | Perlawanan | Perkiraan. | Perkiraan | |||
Bagian | &Menyeberang- | kawat | Kabel | pada 20 ℃ | Membawa | &Menyeberang- | Membawa | Netral / Mes | Kekuatan | pada 20 ℃ | Rata-rata | bobot | |||
bagian | Kapasitas di | bagian | Kapasitas di | Kawat senger | Limite | Diameter | |||||||||
30 ℃ | 30 ℃ | ||||||||||||||
mm² | mm² | PCS | mm | ohm / km | SEBUAH | mm² | SEBUAH | mm | kN | ohm / km | mm | kg / km | |||
1x16 + 25 | 1x16 | 1 | 4.4 | 1.91 | 75 | - | - | 5.9 | 7.4 | 1.380 | 15 | 140 | |||
1x25 + 35 | 1x25 | 7 | 5.9 | 1.20 | 100 | - | - | 6.9 | 10.3 | 0,986 | 17 | 200 | |||
1x35 + 50 | 1x35 | 7 | 6.9 | 0,868 | 125 | - | - | 8.1 | 14.2 | 0,720 | 20 | 275 | |||
3x16 + 25 | 3x16 | 7 | 4.4 | 1.91 | 70 | - | - | 5.9 | 7.4 | 1.380 | 22 | 275 | |||
3x25 + 35 | 3x25 | 7 | 5.9 | 1.20 | 90 | - | - | 6.9 | 10.3 | 0,986 | 26 | 400 | |||
3x35 + 50 | 3x35 | 7 | 6.9 | 0,868 | 115 | - | - | 8.1 | 14.2 | 0,720 | 30 | 575 | |||
3x50 + 70 | 3x50 | 7 | 8.1 | 0,641 | 140 | - | - | 9.6 | 20.6 | 0,493 | 35 | 750 | |||
3x70 + 95 | 3x70 | 7 | 9.6 | 0,443 | 180 | - | - | 11.4 | 27.9 | 0,363 | 41 | 1050 | |||
3x120 + 95 | 3x120 | 19 | 12.8 | 0,253 | 250 | - | - | 11.4 | 27.9 | 0,363 | 47 | 1550 | |||
4x16 + 25 | 4x16 | 1 | 4.4 | 1.91 | 70 | - | - | 5.9 | 7.4 | 1.380 | 24 | 375 | |||
4x25 + 35 | 4x25 | 7 | 5.9 | 0,868 | 90 | - | - | 6.9 | 10.3 | 0,986 | 28 | 550 | |||
4x35 + 50 | 4x35 | 7 | 6.9 | 0,868 | 115 | - | - | 8.1 | 14.2 | 0,720 | 32 | 750 | |||
4x50 + 70 | 4x50 | 7 | 8.1 | 0,641 | 140 | - | - | 9.6 | 20.6 | 0,493 | 38 | 1000 | |||
4x70 + 95 | 4x70 | 7 | 9.6 | 0,443 | 180 | - | - | 11.4 | 27.9 | 0,363 | 45 | 1350 | |||
1x16 + 25 | - | - | - | - | - | 1x16 | 75 | 5.9 | 7.4 | 1.380 | 14 | 140 | |||
1x16 + 1x16 + 25 | 1x16 | 1 | 4.4 | 1.91 | 70 | 1x16 | 60 | 5.9 | 7.4 | 1.380 | 15 | 225 | |||
3x16 + 1x16 + 25 | 3x16 | 1 | 4.4 | 1.91 | 60 | 1x16 | 60 | 5.9 | 7.4 | 1.380 | 22 | 350 | |||
3x25 + 1x16 + 35 | 3x25 | 7 | 5.9 | 1.20 | 80 | 1x16 | 60 | 6.9 | 10.3 | 0,986 | 26 | 475 | |||
3x35 + 1x16 + 35 | 3x35 | 7 | 6.9 | 0,868 | 95 | 1x16 | 60 | 8.1 | 14.2 | 0,720 | 30 | 625 | |||
3x50 + 1x16 + 70 | 3x50 | 7 | 8.1 | 0,641 | 120 | 1x16 | 60 | 9.6 | 20.6 | 0,493 | 35 | 800 | |||
3x70 + 1x16 + 95 | 3x70 | 7 | 9.6 | 0,443 | 150 | 1x16 | 60 | 11.4 | 27.9 | 0,363 | 41 | 1100 | |||
4x16 + 1x16 + 25 | 4x16 | 1 | 4.4 | 1.91 | 60 | 1x16 | 60 | 5.9 | 7.4 | 1.380 | 25 | 450 | |||
4x25 + 1x16 + 35 | 4x25 | 7 | 5.9 | 1.20 | 80 | 1x16 | 60 | 6.9 | 10.3 | 0,986 | 30 | 610 | |||
4x35 + 1x16 + 50 | 4x35 | 7 | 6.9 | 0,868 | 95 | 1x16 | 60 | 8.1 | 14.2 | 0,720 | 34 | 800 | |||
4x50 + 1x16 + 70 | 4x50 | 7 | 8.1 | 0,641 | 120 | 1x16 | 60 | 9.6 | 20.6 | 0,493 | 40 | 1060 | |||
4x70 + 1x16 + 95 | 4x70 | 7 | 9.6 | 0,443 | 180 | 1x16 | 60 | 11.4 | 27.9 | 0,363 | 47 | 1420 |
