GSW Aluminum Conductor Steel Reinforced Anti Extrusion 16.41mm² - 765.99mm²

Produk

kabel obor las

Hubungi kami

Mr. Aric

atwood.lee@hold-one.com

86-- 18724796885

Hubungi Sekarang

GSW Aluminum Conductor Steel Reinforced Anti Extrusion 16.41mm² - 765.99mm²

Jumlah Pesanan Minimum:	0.5km
harga:	0.10-10.99USD/m
kemasan standar:	Drum kayu atau Baja Drum
Periode pengiriman:	10days atau Lebih
metode pembayaran:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Kapasitas Pasokan:	1000km per bulan

Rincian Informasi

Deskripsi produk

Informasi Rinci

Tempat asal

Cina

Nama merek

QINGDAO YICABLE CABLE

Sertifikasi

ASTM A475, BS 183:1972

Konduktor:

Baja galvanis

Luas penampang:

16,41 ~ 765.99mm²

Aplikasi:

Tali ACSR (Overhead).

Isolasi:

Tidak

Sarung:

Tidak

Model No:

GSW

Tipe:

Tegangan tinggi

Menyoroti:

all aluminium alloy conductor

acsr conductor

Deskripsi produk

GSW Aluminum Conductor Steel Reinforced Anti Extrusion 16.41mm² - 765.99mm²

Specifications

The product galvanized steel wire (GSW) is used for the cord of ACSR (Aluminum Conductor Steel Reinforced) conductor. Being the leading enterprise of this industry, the GSW manufactured by Shenghua has excellent mechanical property, best quality of coating and nice condition of surface.

	Diameter(mm)			Tensile Strength(Mpa)		Weight of Zinc(g/m²)
	1.24~2.25			1340~1620		185~215
	2.25~3.00			1310~1590		230
	3.00~3.50			1290~1550		245
	3.50~4.25			1290~1520		260
	4.25~4.75			1290~1520		275
	4.75~5.50			1290~1520		290

Intensity Level	Wire Diameter	Min. Tensile		Min. Stress With 1%	Min. Extension	Min. Number of 360°	Diameter of Testing
		Strength		Extension	Percentage When L=250	twists		Mandril
	mm		mpa	mpa	%			multiple
	>1.24~2.25	1340		1170	3.0	16		1
	>2.25~2.75	1310		1140	3.0	16		1
	>2.75~3.00	1310		1140	3.5	16		1
General	>3.00~3.50	1290		1100	3.5	14		1
	>3.50~4.25	1290		1100	4.0	12		1
	>4.25~4.75	1290		1100	4.0	12		1
	>4.75~5.50	1290		1100	4.0	12		1
	>1.24~2.25	1450		1310	2.5	16		3
	>2.25~2.75	1410		1280	2.5	16		3
	>2.75~3.00	1410		1280	3.0	16		4
High	>3.00~3.50	1410		1240	3.0	14		4
	>3.50~4.25	1380		1170	3.0	12		4
	>4.25~4.75	1380		1170	3.0	12		4
	>4.75~5.50	1380		1170	3.0	12		4
	>1.24~2.25	1620		1450	2.0	14		4
	>2.25~2.75	1590		1410	2.0	14		4
	>2.75~3.00	1590		1410	2.5	12		5
Very High	>3.00~3.50	1550		1380	2.5	12		5
	>3.50~4.25	1520		1340	2.5	10		5
	>4.25~4.75	1520		1340	2.5	10		5
	>4.75~5.50	1520		1270	2.5	10		5

GALVANIZED STEEL WIRE/GSW

						ASTM A475
Number of Wires	Approx. Strand Dia.		Siemens	High	Extra High	Approx. Weight
/Dia.			Martin Grade	Strength Grade	Strength Grade
	Inch	mm	kN	kN	kN	kg/km
3/2.64	7/32	5.56	10.409	15.569	21.796	131
3/3.05	1/4	6.35	13.523	21.040	29.981	174
3/3.05	1/4	6.35	-	-	-	174
3/3.30	9/32	7.14	15.035	23.398	33.362	204
3/3.68	5/16	7.94	18.193	28.246	40.479	256
3/4.19	3/8	9.52	24.732	37.187	52.489	328
7/1.04	1/8	3.18	4.048	5.916	8.140	49
7/1.32	5/32	3.97	6.539	9.519	13.078	76
7/1.57	3/16	4.76	8.452	12.677	17.748	108
7/1.65	3/16	4.76	-	-	-	118
7/1.83	7/32	5.56	11.387	17.126	24.020	145
7/2.03	1/4	6.35	14.012	21.129	29.581	181
7/2.36	9/32	7.14	18.905	28.469	39.812	243
7/2.64	5/16	7.94	23.798	35.586	49.820	305
7/2.77	5/16	7.94	-	-	-	335
7/3.05	3/8	9.52	30.915	48.040	68.503	407
7/3.68	7/16	11.11	41.591	64.499	92.523	594
7/4.19	1/2	12.70	53.823	83.627	119.657	768
7/4.78	9/16	14.29	69.837	108.981	155.688	991
7/5.26	5/8	15.88	84.961	131.667	188.605	1211
19/2.54	1/2	12.70	56.492	84.961	118.768	751
19/2.87	9/16	12.49	71.616	107.202	149.905	948
19/3.18	5/8	15.88	80.513	124.995	178.819	1184
19/3.81	3/4	19.05	116.543	181.487	259.331	1719
19/4.50	7/8	22.22	159.691	248.211	354.523	2352
19/5.08	1	25.40	209.066	325.610	464.839	2384
37/3.63	1	25.40	205.508	319.827	456.832	3061
37/4.09	11/8	28.58	262.000	407.457	581.827	4006
37/4.55	11/4	31.75	324.720	505.318	721.502	4833

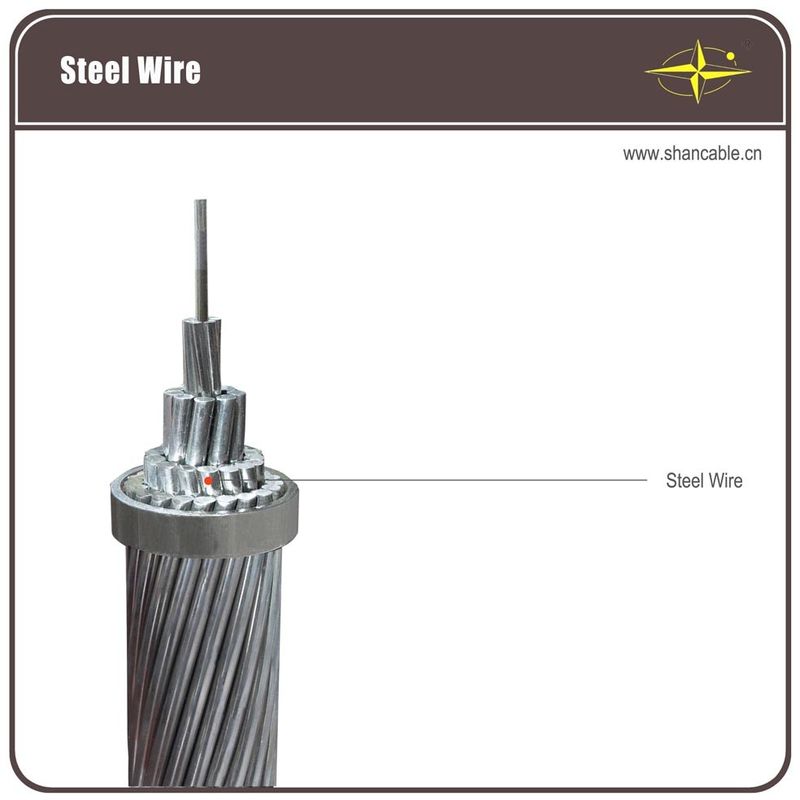

GSW Aluminum Conductor Steel Reinforced Anti Extrusion 16.41mm² - 765.99mm² 0

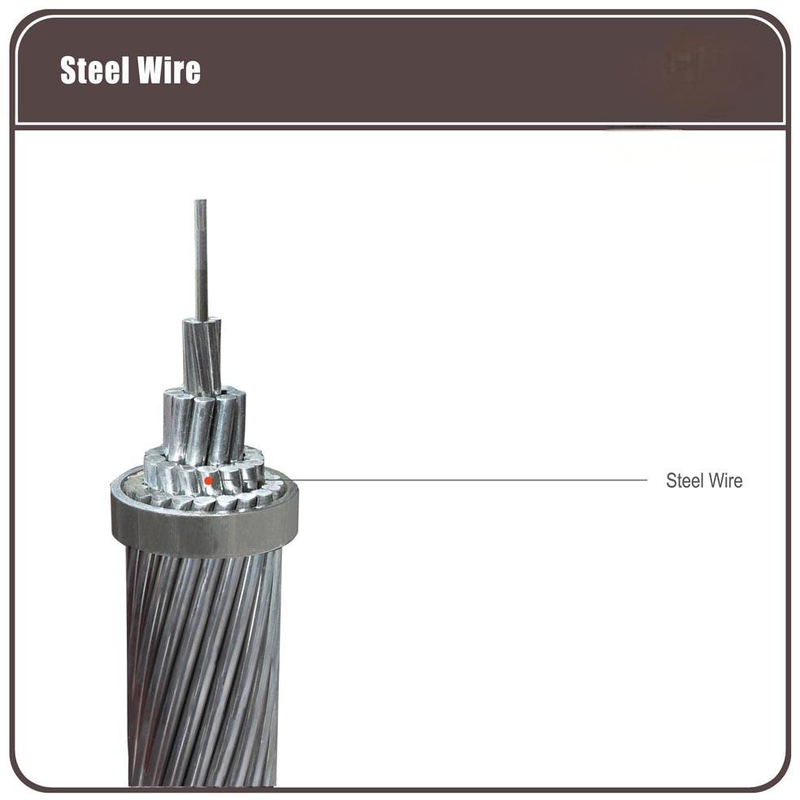

GSW Aluminum Conductor Steel Reinforced Anti Extrusion 16.41mm² - 765.99mm² 1
