Jumlah Pesanan Minimum:	0.5km
kemasan standar:	Drum kayu atau Baja Drum
Periode pengiriman:	10days atau Lebih
metode pembayaran:	D / A, L / C, D / P, T / T, Western Union, MoneyGram
Kapasitas Pasokan:	1000km per bulan

Rincian Informasi

Deskripsi produk

Informasi Rinci

Tempat asal

Cina

Nama merek

QINGDAO YICABLE CABLE

Sertifikasi

EN51082

Konduktor:

Aluminium(AAC)

Isolasi:

Tidak

Jumlah Wires:

nama sandi:

Nyamuk

Daerah:

23,3 mm persegi

Aplikasi:

Overhead Power System

Menyoroti:

aaac conductor

acsr conductor

Deskripsi produk

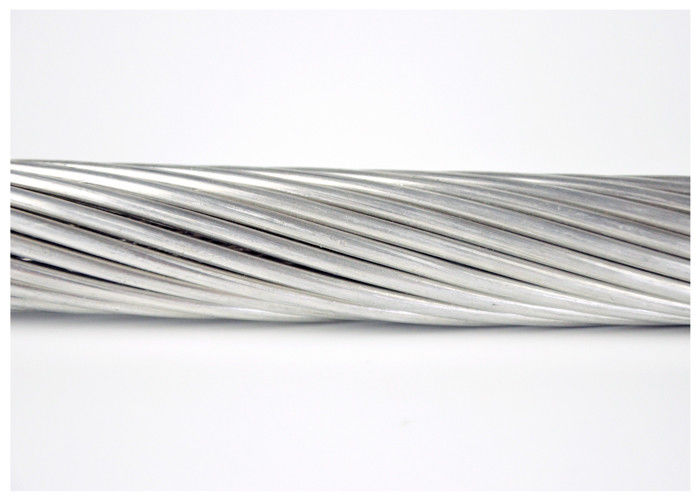

Midge Code Bare Overhead Conductors For Electrical Power Transmission / Distribution Lines

1 Application of All Aluminium Bare Conductors (AAC)

The bare conductor: AAC,AAAC,ACSR,AACSR,ACAR and Galvanized steel wire, are used in overhead electrical power transmission and distribution lines with various grade voltage.

Type

	Description	No. of Wire	Section Area (mm2)
AAC	All Aluminum Conductor	7~127	16~1500
AAAC	All Aluminum Alloy Conductor	7~91	17~1300
ACSR	Aluminum Conductors Steel Reinforced	7~103	16~1250
AACSR	Aluminum Alloy Conductors Steel Reinforced	7~103	16~1250
ACAR/AW	Aluminum Conductors Aluminum Alloy Reinforced	7~103	16~1250
ACSW/S	Aluminum Conductors Aluminum Clad Steel Wire/Strand	7~103	16~1250
GSW	Galvanized Steel Wire	3/2.64~37/4.55	16.41~765.99

AAC							EN 51082

	Area	No. of	Diameter		Mass per unit	Rated	DC
Code Name		wires	Wire	Cond.	length	strength	Resistance
	mm²		mm	mm	kg/km	kN	Ω/km
Midge	23.3	7	2.06	6.18	63.8	4.20	1.2249
Gnat	26.9	7	2.21	6.63	73.4	4.83	1.0643
Mosquito	36.9	7	2.59	7.77	100.8	6.27	0.7749
Ladybird	42.8	7	2.79	8.37	117.0	7.28	0.6678
Ant	52.8	7	3.10	9.30	144.4	8.72	0.5409
Fly	63.6	7	3.40	10.2	173.7	10.49	0.4497
Bluebottle	73.6	7	3.66	11.0	201.3	11.78	0.3880
Earwig	78.6	7	3.78	11.3	214.7	12.57	0.3638
Grasshopper	84.1	7	3.91	11.7	229.7	13.45	0.3400
Clegg	95.6	7	4.17	12.5	261.3	15.30	0.2989
Wasp	106.0	7	4.39	13.2	289.6	16.95	0.2697
Beetle	106.4	19	2.67	13.4	292.4	18.08	0.2701
Bee	132.0	7	4.90	14.7	360.8	21.12	0.2165
Hornet	157.6	19	3.25	16.3	433.2	26.01	0.1823
Caterpillar	185.9	19	3.53	17.7	511.1	29.75	0.1546
Chafer	213.2	19	3.78	18.9	586.0	34.12	0.1348
Spider	237.6	19	3.99	20.0	652.9	38.01	0.1210
Cockroach	265.7	19	4.22	21.1	730.4	42.52	0.1081
Butterfly	322.7	19	4.65	23.3	886.8	51.63	0.0891
Moth	373.1	19	5.00	25.0	1025.3	59.69	0.0770
Drone	372.4	37	3.58	25.1	1027.1	59.59	0.0774
Centipede	415.2	37	3.78	26.5	1145.1	66.43	0.0695
Maybug	486.1	37	4.09	28.6	1340.6	77.78	0.0593
Scorpion	529.8	37	4.27	29.9	1461.2	84.77	0.0544
Cicada	628.3	37	4.65	32.6	1732.9	100.54	0.0459

Midge Code Bare Overhead Conductors For Electrical Power Transmission / Distribution Lines 0
