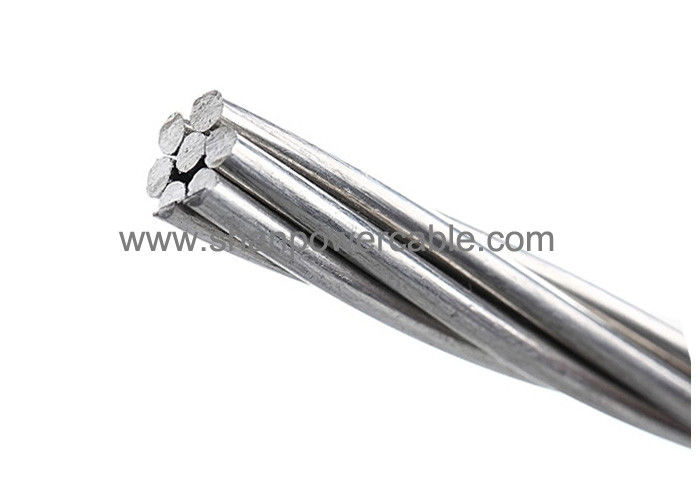

All Aluminium Alloy Stranded Bare Conductors AAAC 18.8sq mm ~ 996sq mm

Jumlah Pesanan Minimum:	500M
harga:	0.10-30.99USD/m
kemasan standar:	Drum kayu atau Baja Drum
Periode pengiriman:	15 hari
metode pembayaran:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Kapasitas Pasokan:	1000km per bulan

Rincian Informasi

Deskripsi produk

Informasi Rinci

Tempat asal

Cina

Nama merek

QINGDAO YICABLE CABLE

Sertifikasi

EN 51082

Bahan konduktor:

aspal

nama sandi:

Kotak, pinus, Totara, Redwood...

Jumlah Wires:

7pcs ~ 61pcs

Diameter ban:

5.6mm ~ 41mm

Aplikasi:

Overhead Power System

Persilangan:

16 - 800 sq mm

Menyoroti:

all aluminium alloy conductor

acsr conductor

Deskripsi produk

1 Application of All Aluminium Alloy Bare Conductors AAAC

The bare conductor: AAC,AAAC,ACSR,AACSR,ACAR and Galvanized steel wire, are used in overhead electrical power transmission and distribution lines with various grade voltage.

2 Standards of All Aluminium Alloy Bare Conductors AAAC

Our Bare conductor can meet or exceedthe item of cable international standards, such as:IEC 61089, BS 215 part1(AAC), BS 215 part2, BS 324201 (AAAC), DIN 48201 part 5 (AAC), DIN 48204, ASTM B231(AAC), ASTM B232(ACSR), BS EN 50182, BS EN 50183(AAAC), GB/T 1179-2008. Also we accept the OEM and the new design cable as customers.

Type	Description	No. of Wire	Section Area (mm2)
AAC	All Aluminum Conductor	7~127	16~1500
AAAC	All Aluminum Alloy Conductor	7~91	17~1300
ACSR	Aluminum Conductors Steel Reinforced	7~103	16~1250
AACSR	Aluminum Alloy Conductors Steel Reinforced	7~103	16~1250
ACAR/AW	Aluminum Conductors Aluminum Alloy Reinforced	7~103	16~1250
ACSW/S	Aluminum Conductors Aluminum Clad Steel Wire/Strand	7~103	16~1250
GSW	Galvanized Steel Wire	3/2.64~37/4.55	16.41~765.99

3. Specification

AAAC							EN 51082

	Area	No. of	Diameter		Mass per unit	Rated	DC
Code Name		wires	Wire	Cond.	length	strength	Resistance
	mm²		mm	mm	kg/km	kN	Ω/km
Box	18.8	7	1.85	5.55	51.4	5.55	1.7480
Acacia	23.8	7	2.08	6.24	64.9	7.02	1.3828
Almond	30.1	7	2.34	7.02	82.2	8.88	1.0926
Cedar	35.5	7	2.54	7.62	96.8	10.46	0.9273
Deodar	42.2	7	2.77	8.31	115.2	12.44	0.7797
Fir	47.8	7	2.95	8.85	130.6	14.11	0.6875
Hazel	59.9	7	3.30	9.90	163.4	17.66	0.5494
Pine	71.6	7	3.61	10.8	195.6	21.14	0.4591
Holly	84.1	7	3.91	11.7	229.5	24.79	0.3913
Willow	89.7	7	4.04	12.1	245.0	26.47	0.3665
Oak	118.9	7	4.65	14.0	324.5	35.07	0.2767
Mulberry	150.9	19	3.18	15.9	414.3	44.52	0.2192
Ash	180.7	19	3.48	17.4	496.1	53.31	0.1830
Elm	211.0	19	3.76	18.8	579.2	62.24	0.1568
Poplar	239.4	37	2.87	20.1	659.4	70.61	0.1387
Sycamore	303.2	37	3.23	22.6	835.2	89.40	0.1095
Upas	362.1	37	3.53	24.7	997.5	106.82	0.0917
Yew	479.0	37	4.06	28.4	1319.6	141.31	0.0693
Totara	498.1	37	4.14	29.0	1372.1	146.93	0.0666
Rubus	586.9	61	3.50	31.5	1622.0	173.13	0.567
Sorbus	659.4	61	3.71	33.4	1822.5	194.53	0.0505
Araucaria	821.1	61	4.14	37.3	2269.4	242.24	0.0406
Redwood	996.2	61	4.56	41.0	2753.2	293.88	0.0334

All Aluminium Alloy Stranded Bare Conductors AAAC 18.8sq mm ~ 996sq mm 0
