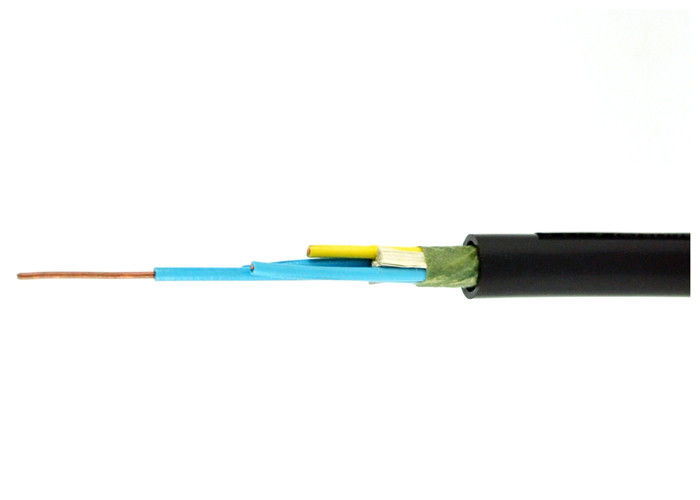

Unarmoured PVC Control Cables Non-Screened For Indoors / Cable Trench

Tempat asal	Cina
Nama merek	QINGDAO YICABLE CABLE
Sertifikasi	CE/KEMA/CCC/TUV

Detail Produk

Insualtion:

PVC

Sarung:

PVC

Bahan:

Tembaga

Jenis konduktor:

Class1 atau Class2

Core No.:

2-61

Ukuran:

0.75mm2 untuk 10mm 2

Bentuk konduktor:

Bulat

Warna:

Hitam atau abu-abu

Menyoroti:

multicore flexible cable

multicore power cable

Payment & Shipping Terms

Kuantitas min Order

1000m

Harga

USD 0.4 To 10.5 per Meter

Kemasan rincian

100/200 Meter per Rolls atau Wooden Drums Baja

Waktu pengiriman

10-15 hari

Menyediakan kemampuan

8 KM per Hari

Deskripsi produk

Unarmoured PVC Control Cables Non-Screened For Indoors / Cable Trench

Construction:

Conductor: Solid or Stranded Copper Conductor

Insualtion: PVC

Sheath: PVC

Standard:

IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 450/750V

Maximum Conductor Temperature: under normal (70℃), emergency (100℃ or short circuit no more than 5 s (160℃) conditions.

Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position

Min. Bending Radius: 6 x cable O.D

Certificates

CE, RoHS, CCC, KEMA and more others at request

Application:

Suitable for being laid indoors, in cable trench, pipelines or other specific occasions.

Specifications:

Cross-Sectional Area mm2	Thickness of Insulation	Thickness of Sheath	Overall Diameter		Min resistance of insulation at 70℃ MΩ/km	Max.D.C resistance of at 20℃ MΩ/km	Approx Weight (kg/km)
Cross-Sectional Area mm2	Thickness of Insulation	Thickness of Sheath	min	max	Min resistance of insulation at 70℃ MΩ/km	Max.D.C resistance of at 20℃ MΩ/km	Approx Weight (kg/km)
2x0.75	0.6	1.2	6.7	8.1	0.012	24.5	59
2x1	0.6	1.2	7	8.5	0.011	18.1	67
2x1.5	0.7	1.2	7.9	9.5	0.011	12.1	86
2x2.5	0.8	1.2	9	10.9	0.01	7.41	120
2x4	0.8	1.2	9.9	11.9	0.0085	4.61	167
2x6	0.8	1.2	10.8	13.1	0.007	3.08	220
3x0.75	0.6	1.2	7.1	8.5	0.012	24.5	71
3x1	0.6	1.2	7.4	8.9	0.011	18.1	82
3x1.5	0.7	1.2	8.3	10	0.011	12.1	108
3x2.5	0.8	1.2	9.5	11.5	0.01	7.41	154
3x4	0.8	1.2	10.5	12.4	0.0085	4.61	210
3x6	0.8	1.2	11.5	13.9	0.007	3.08	310
