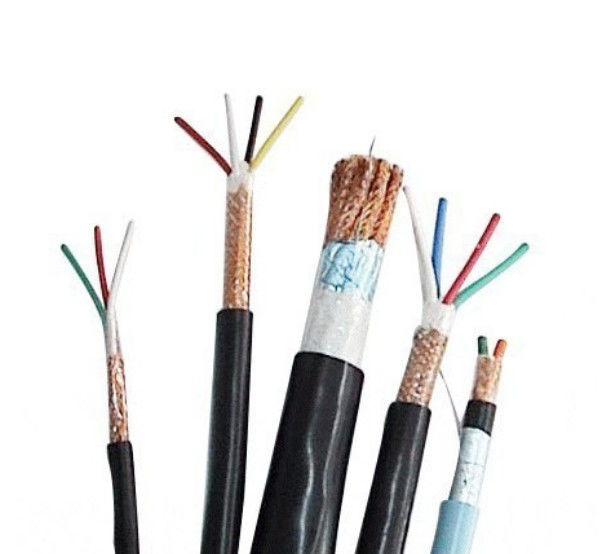

Flame Retardant PVC Sheathed Control Cables , Steel Tape Armoured Cable

Tempat asal	Cina
Nama merek	QINGDAO YICABLE CABLE
Sertifikasi	CE/KEMA/CCC/TUV

Detail Produk

Inti:

4 sampai 61

Baja:

Pita baja

Ciri:

Tahan Api

Persilangan:

2,5mm2 hingga 10mm2

Tipe Konduktor:

Kelas 1 atau Kelas 2

Warna:

Hitam

Menyoroti:

multicore flexible cable

multi core electrical cable

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1000m

Harga

USD 0.4 To 10.5 per Meter

Kemasan rincian

Drums Baja kayu

Waktu pengiriman

10-15 hari

Menyediakan kemampuan

8 KM per Hari

Deskripsi produk

Flame Retardant PVC Sheathed Control Cables , Steel Tape Armoured Cable

Descriptions:

Conductor: Solid or Stranded Copper Conductor

Insualtion: XLPE

Inner Sheath: PVC

Armor: Steel Tape

Sheath: Flame Retardant PVC

The advantage of Flame Retardant Cable

In the event of fire, protect people's lives and property safety,reduce the losses.

Operating characteristics

Rated voltages U0/U: 450/750V

Permissible Max. continuous operating temperature of conductor:

PVC insulated: 70°C

Upon short circuit (Max. Duration time 5s) the Max.

temperature of conductor not higher than:

PVC insulated: 160°C;

Ambient temperature of installation not less than 0°C.

Application:

For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750KV.

Standard:

IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request

Certificates

CE, RoHS, CCC, KEMA and more others at request

Cross-Sectional Area mm2	Thickness of Insulation mm	Thickness of Steel Tape mm	Thickness of Sheath mm	Overall Diameter mm		Min resistance of insulation at 70℃ MΩ/km	Max.D.C resistance of at 20℃ MΩ/km	Approx Weight (kg/km)
Cross-Sectional Area mm2	Thickness of Insulation mm	Thickness of Steel Tape mm	Thickness of Sheath mm	min	max	Min resistance of insulation at 70℃ MΩ/km	Max.D.C resistance of at 20℃ MΩ/km	Approx Weight (kg/km)
4x2.5	0.8	2x0.2(0.3)	1.5	13.4	16.1	0.001	7.41	450
4x4	0.8	2x0.2(0.3)	1.5	14.4	17.4	0.0085	4.61	505
4x6	0.8	2x0.2(0.3)	1.5	15.6	18.8	0.007	3.08	619
4x10	1	2x0.2(0.3)	1.7	19.4	23.5	0.0065	1.83	947
5x2.5	0.8	2x0.2(0.3)	1.5	14.3	17.2	0.001	7.41	506
5x4	0.8	2x0.2(0.3)	1.5	15.4	18.6	0.0085	4.61	586
5x6	0.8	2x0.2(0.3)	1.7	16.7	20.2	0.007	3.08	737
5x10	1	2x0.2(0.3)	1.7	21	25.4	0.0065	1.83	1125
7x0.75	0.6	2x0.2(0.3)	1.5	11.8	14.2	0.012	24.5	317
7x1.0	0.6	2x0.2(0.3)	1.5	12.2	14.7	0.011	18.1	425
7x2.5	0.7	2x0.2(0.3)	1.5	13.5	16.3	0.01	7.41	554
7x4	0.8	2x0.2(0.3)	1.5	15.2	18.4	0.0085	4.61	701
7x6	0.8	2x0.2(0.3)	1.7	18	21.7	0.007	3.08	900
7x10	1	2x0.2(0.3)	1.7	22.7	27.4	0.0065	1.83	1397
10x0.75	0.6	2x0.2(0.3)	1.5	13.8	16.7	0.012	24.5	449
10x1	0.6	2x0.2(0.3)	1.5	14.4	17.4	0.011	18.1	558
10x1.5	0.7	2x0.2(0.3)	1.5	16.1	19.5	0.011	12.1	753
10x2.5	0.8	2x0.2(0.3)	1.7	18.8	22.7	0.01	7.41	956
10x4	0.8	2x0.2(0.3)	1.7	20.5	24.8	0.0085	4.61	1203
10x6	0.8	2x0.2(0.3)	1.7	22.5	27.1	0.007	3.08	1534
