Jumlah Pesanan Minimum:	1000m
harga:	USD 0.4 To 10.5 per Meter
kemasan standar:	Drums Baja kayu
Periode pengiriman:	10-15 hari
Kapasitas Pasokan:	8 KM per Hari

Rincian Informasi

Deskripsi produk

Informasi Rinci

Tempat asal

Cina

Nama merek

QINGDAO YICABLE CABLE

Sertifikasi

CE/KEMA/CCC/TUV

Inti:

4-61

Zirah:

baja Tape

logam Layar:

Tape tembaga

Ukuran:

0.75mm2 untuk 10mm 2

Jenis konduktor:

Kelas A atau kelas B

Isolasi:

PVC

out selubung:

PVC

Menyoroti:

multicore flexible cable

multicore power cable

Deskripsi produk

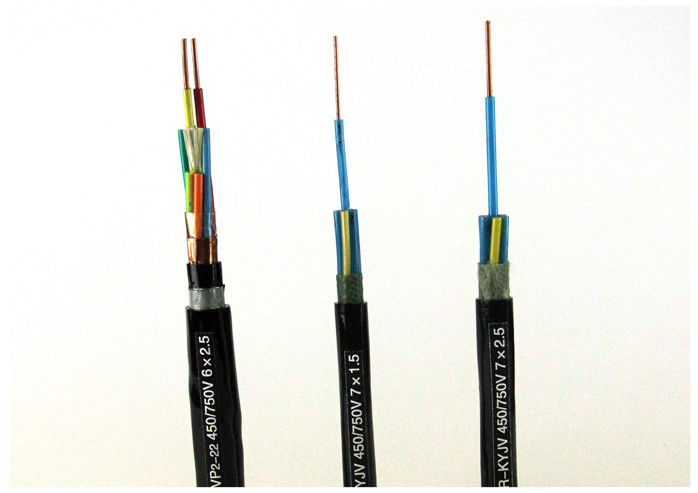

Control Wire Steel Tape Armoured Cable Copper Tape Screen Environmental Protection

Descriptions:

Conductor: Solid or Stranded Copper Conductor

Insualtion: PVC

Screen: Copper Tape

Inner Sheath: PVC

Armor: Steel Tape

Sheath: PVC

Operating characteristics

Rated voltages U0/U: 450/750V

Permissible Max. continuous operating temperature of conductor:

PVC insulated: 70°C

Upon short circuit (Max. Duration time 5s) the Max.

temperature of conductor not higher than:

PVC insulated: 160°C;

Ambient temperature of installation not less than 0°C.

Application:

For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750KV.

Standard:

IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request

Certificates

CE, RoHS, CCC, KEMA and more others at request

Technology Data

Cross-Sectional Area mm2	Thickness of Insulation mm	Thickness of Copper tape Screen mm	Thickness of Steel Tape mm	Thickness of Sheath mm	Overall Diameter mm		Min resistance of insulation at 70℃ MΩ/km	Max.D.C resistance of at 20℃ MΩ/km	Approx Weight (kg/km)
Cross-Sectional Area mm2	Thickness of Insulation mm	Thickness of Copper tape Screen mm	Thickness of Steel Tape mm	Thickness of Sheath mm	min	max	Min resistance of insulation at 70℃ MΩ/km	Max.D.C resistance of at 20℃ MΩ/km	Approx Weight (kg/km)
4x2.5	0.8	0.05-0.1	2x0.2(0.3)	1.5	13.5	16.2	0.001	7.41	470
4x4	0.8	0.05-0.1	2x0.2(0.3)	1.5	14.5	17.5	0.0085	4.61	525
4x6	0.8	0.05-0.1	2x0.2(0.3)	1.5	15.7	18.9	0.007	3.08	640
4x10	1	0.05-0.1	2x0.2(0.3)	1.7	19.5	23.6	0.0065	1.83	970
5x2.5	0.8	0.05-0.1	2x0.2(0.3)	1.5	14.4	17.3	0.001	7.41	526
5x4	0.8	0.05-0.1	2x0.2(0.3)	1.5	15.5	18.7	0.0085	4.61	606
5x6	0.8	0.05-0.1	2x0.2(0.3)	1.7	16.8	20.3	0.007	3.08	757
5x10	1	0.05-0.1	2x0.2(0.3)	1.7	21.2	25.5	0.0065	1.83	1145
7x0.75	0.6	0.05-0.1	2x0.2(0.3)	1.5	11.9	14.3	0.012	24.5	337
7x1.0	0.6	0.05-0.1	2x0.2(0.3)	1.5	12.3	14.7	0.011	18.1	445
7x2.5	0.7	0.05-0.1	2x0.2(0.3)	1.5	13.3	16.2	0.01	7.41	574
7x4	0.8	0.05-0.1	2x0.2(0.3)	1.5	15.3	18.5	0.0085	4.61	723
7x6	0.8	0.05-0.1	2x0.2(0.3)	1.7	18.1	21.8	0.007	3.08	930
7x10	1	0.05-0.1	2x0.2(0.3)	1.7	22.8	27.4	0.0065	1.83	1430
10x0.75	0.6	0.05-0.1	2x0.2(0.3)	1.5	13.9	16.8	0.012	24.5	470
10x1	0.6	0.05-0.1	2x0.2(0.3)	1.5	14.5	17.5	0.011	18.1	580
10x1.5	0.7	0.05-0.1	2x0.2(0.3)	1.5	16.2	19.6	0.011	12.1	780
10x2.5	0.8	0.05-0.1	2x0.2(0.3)	1.7	18.9	22.8	0.01	7.41	986
10x4	0.8	0.05-0.1	2x0.2(0.3)	1.7	20.6	24.9	0.0085	4.61	1256
10x6	0.8	0.05-0.1	2x0.2(0.3)	1.7	22.6	27.2	0.007	3.08	1589
