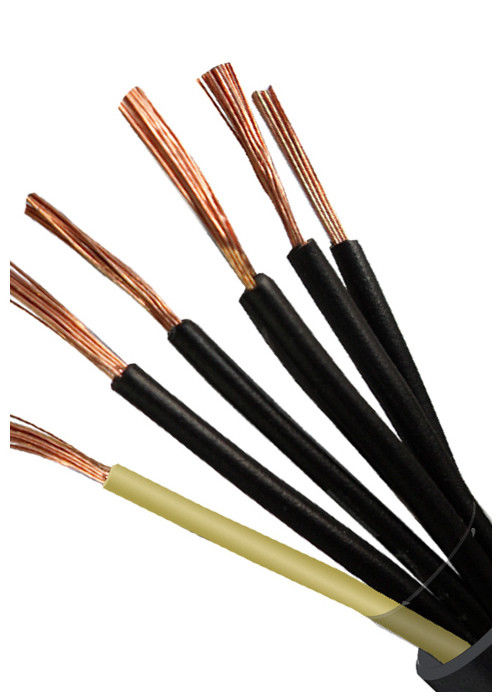

Control Class 5 Copper Conductor Cable Black Color 0.5mm2 - 10mm2

Tempat asal	Cina
Nama merek	QINGDAO YICABLE CABLE
Sertifikasi	CE/KEMA/CCC/TUV

Detail Produk

Insualtion:

PVC

Sarung:

PVC

Bahan:

anil Tembaga

Jenis konduktor:

kelas yang fleksibel 5

Core No.:

4-61

Ukuran:

0.5mm2 untuk 10mm 2

stranded Jenis:

Bundle Stranded

Warna:

Hitam atau abu-abu

Menyoroti:

multicore power cable

multi core electrical cable

Payment & Shipping Terms

Kuantitas min Order

1000m

Harga

USD 0.4 To 10.5 per Meter

Kemasan rincian

100/200 Meter per Rolls atau Wooden Drums Baja

Waktu pengiriman

10-15 hari

Menyediakan kemampuan

8 KM per Hari

Deskripsi produk

Control Class 5 Copper Conductor Cable Black Color 0.5mm2 - 10mm2

Construction:

Conductor: Class 5 Copper Conductor

Insualtion: PVC

Sheath: PVC

Standard:

IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 450/750V

Maximum Conductor Temperature: under normal (70℃), emergency (100℃ or short circuit no more than 5 s (160℃) conditions.

Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position

Min. Bending Radius: 6 x cable O.D

Certificates

CE, RoHS, CCC, KEMA and more others at request

Application:

Suitable for being laid indoors, in cable trench, pipelines or other specific occasions and High performance soft place

Specifications:

Cross-Sectional Area mm2	Thickness of Insulation	Thickness of Sheath	Overall Diameter		Min resistance of insulation at 70℃ MΩ/km	Max.D.C resistance of at 20℃ MΩ/km
Cross-Sectional Area mm2	Thickness of Insulation	Thickness of Sheath	min	max	Min resistance of insulation at 70℃ MΩ/km	Max.D.C resistance of at 20℃ MΩ/km
4x0.5	0.6	1.2	7.3	9.2	0.013	39
4x0.75	0.6	1.2	7.6	9.6	0.011	26
4x1.0	0.6	1.2	8	10	0.01	19.5
4x1.5	0.7	1.2	9	11.3	0.01	13.3
4x2.5	0.8	1.2	10.5	13.1	0.009	7.98
5x0.75	0.6	1.2	7.9	9.9	0.013	26
5x1.0	0.6	1.2	8.3	10.3	0.011	19.5
5x1.5	0.7	1.2	9.8	12.2	0.01	13.3
5x2.5	0.8	1.5	11.5	14.3	0.009	7.98
7x0.5	0.6	1.2	8.5	10.6	0.013	39
7x0.75	0.6	1.2	8.9	11.1	0.011	26
7x1.0	0.6	1.2	9.3	11.7	0.01	19.5
7x1.5	0.7	1.2	10.6	13.2	0.01	13.3
7x2.5	0.8	1.5	13.1	16.2	0.009	7.98
