Steel Tape Armour Flexible Control Cables Customized For Connection Wire System

Jumlah Pesanan Minimum:	1000m
harga:	USD 0.4 To 10.5 per Meter
kemasan standar:	Drums Baja kayu
Periode pengiriman:	10-15 hari
Kapasitas Pasokan:	8 KM per Hari

Rincian Informasi

Deskripsi produk

Informasi Rinci

Tempat asal

Cina

Nama merek

QINGDAO YICABLE CABLE

Sertifikasi

CE/KEMA/CCC/TUV

Inti:

4-61

Zirah:

baja Tape

Isolasi:

PVC

Persilangan:

2.5mm2 ke 10MM2

Jenis konduktor:

kelas 5

Kekerasan:

fleksibel

selubung batin:

PVC

Menyoroti:

multicore flexible cable

multi core electrical cable

Deskripsi produk

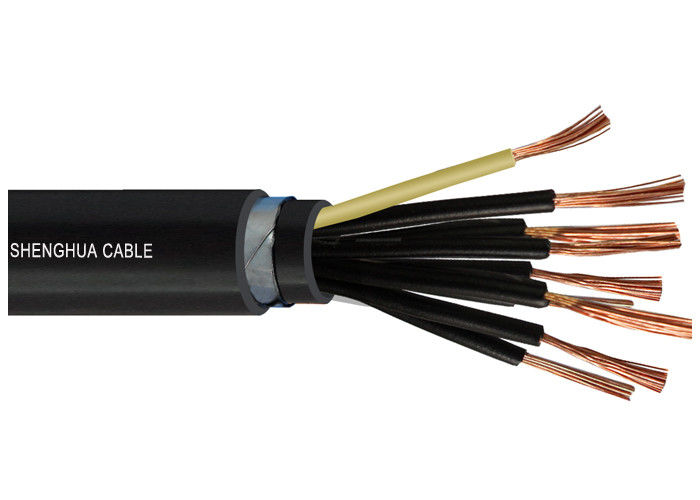

Steel Tape Armour Flexible Control Cables Customized For Connection Wire System

Descriptions:

Conductor: Flexible Copper Conductor

Insualtion: PVC

Inner Sheath: PVC

Armor: Steel Tape Armour

Sheath: PVC

Operating characteristics

Rated voltages U0/U: 450/750V

Permissible Max. continuous operating temperature of conductor:

PVC insulated: 70°C

Upon short circuit (Max. Duration time 5s) the Max.

temperature of conductor not higher than:

PVC insulated: 160°C;

Ambient temperature of installation not less than 0°C.

Application:

For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750KV.

Standard:

IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request

Certificates

CE, RoHS, CCC, KEMA and more others at request

Why Choose SHAN CABLE

Here's Shanghai Shenghua Cable Is Committed to Offer for Every Customer:

High quality cable product with competitive price;

OEM cable product

Custom design per specific cable requirements and budgets;

Fast and on-time delivery of cable;

Flexible business deal;

Chief cable engineer with over 40 years' experience;

Harmonious colleague and customer relationship;

All cable products 100% Inspection;

Comprehensive after-sale service.

Cross-Sectional Area mm2	Thickness of Insulation mm	Thickness of Steel Tape mm	Thickness of Sheath mm	Overall Diameter mm		Min resistance of insulation at 70℃ MΩ/km	Max.D.C resistance of at 20℃ MΩ/km	Approx Weight (kg/km)
Cross-Sectional Area mm2	Thickness of Insulation mm	Thickness of Steel Tape mm	Thickness of Sheath mm	min	max	Min resistance of insulation at 70℃ MΩ/km	Max.D.C resistance of at 20℃ MΩ/km	Approx Weight (kg/km)
4x2.5	0.8	2x0.2(0.3)	1.5	13.4	16.1	0.001	7.98	450
4x4	0.8	2x0.2(0.3)	1.5	14.4	17.4	0.0085	4.95	505
4x6	0.8	2x0.2(0.3)	1.5	15.6	18.8	0.007	3.3	619
4x10	1	2x0.2(0.3)	1.7	19.4	23.5	0.0065	1.91	947
5x2.5	0.8	2x0.2(0.3)	1.5	14.3	17.2	0.001	7.98	506
5x4	0.8	2x0.2(0.3)	1.5	15.4	18.6	0.0085	4.95	586
5x6	0.8	2x0.2(0.3)	1.7	16.7	20.2	0.007	3.3	737
5x10	1	2x0.2(0.3)	1.7	21	25.4	0.0065	1.91	1125
7x0.75	0.6	2x0.2(0.3)	1.5	11.8	14.2	0.012	26	317
7x1.0	0.6	2x0.2(0.3)	1.5	12.2	14.7	0.011	19.5	425
7x2.5	0.7	2x0.2(0.3)	1.5	13.5	16.3	0.01	7.98	554
7x4	0.8	2x0.2(0.3)	1.5	15.2	18.4	0.0085	4.95	701
7x6	0.8	2x0.2(0.3)	1.7	18	21.7	0.007	3.30	900
7x10	1	2x0.2(0.3)	1.7	22.7	27.4	0.0065	1.91	1397
10x0.75	0.6	2x0.2(0.3)	1.5	13.8	16.7	0.012	26	449
10x1	0.6	2x0.2(0.3)	1.5	14.4	17.4	0.011	19.5	558
10x1.5	0.7	2x0.2(0.3)	1.5	16.1	19.5	0.011	13.3	753
10x2.5	0.8	2x0.2(0.3)	1.7	18.8	22.7	0.01	7.98	956
10x4	0.8	2x0.2(0.3)	1.7	20.5	24.8	0.0085	4.95	1203
10x6	0.8	2x0.2(0.3)	1.7	22.5	27.1	0.007	3.3	1534

Steel Tape Armour Flexible Control Cables Customized For Connection Wire System 0
